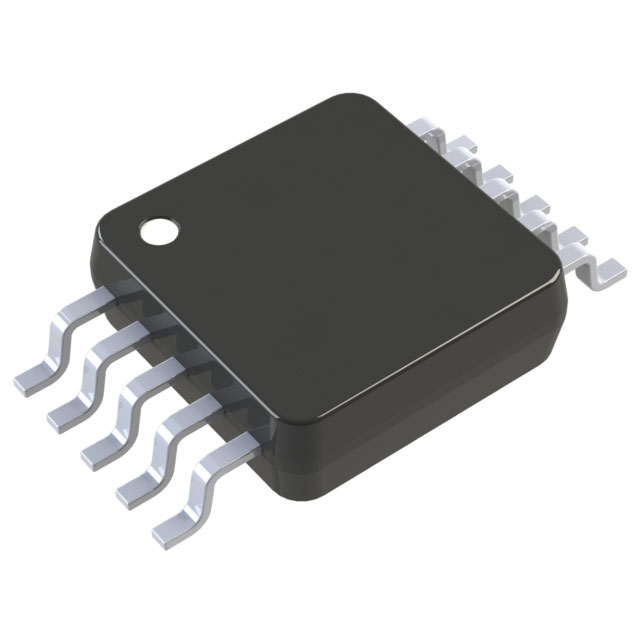

ADG1423BRMZ-REEL7
IC SW SPST-NO/NCX2 2.4OHM 10MSOP
| Part Description |
2 Circuit IC Switch 1:1 2.4Ohm 10-MSOP |
|---|---|
| Quantity | 513 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 10-TFSOP, 10-MSOP (0.118″”, 3.00mm Width) |
|---|---|
| Device Package | 10-MSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO/NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 2.4Ohm |
| Channel-to-Channel Matching (ΔRon): | 20mOhm |
| Voltage – Supply, Single (V+): | 5V ~ 16.5V |
| Voltage – Supply, Dual (V±): | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max): | 145ns, 145ns |
| -3db Bandwidth: | 180MHz |
| Charge Injection: | -5pC |
| Channel Capacitance (CS(off), CD(off)): | 18pF, 22pF |
| Current – Leakage (IS(off)) (Max): | 500pA |
| Crosstalk: | -74dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
