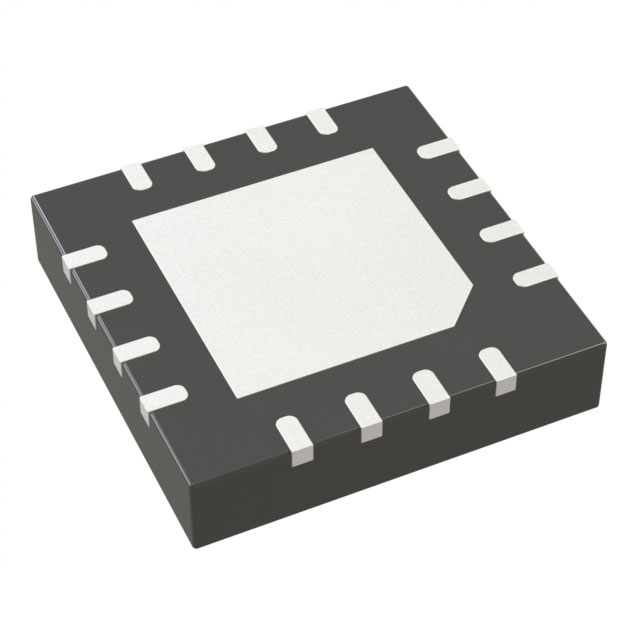

ADG1436YCPZ-REEL
IC SWITCH SPDTX2 1.8OHM 16LFCSP
| Part Description |
2 Circuit IC Switch 2:1 1.8Ohm 16-LFCSP-VQ (4x4) |
|---|---|
| Quantity | 200 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 16-VQFN Exposed Pad, CSP |
|---|---|
| Device Package | 16-LFCSP-VQ (4×4) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage – Supply, Single (V+): | 5V ~ 16.5V |
| Voltage – Supply, Dual (V±): | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max): | 120ns, 130ns |
| -3db Bandwidth: | 110MHz |
| Charge Injection: | -20pC |
| Channel Capacitance (CS(off), CD(off)): | 23pF, 50pF |
| Current – Leakage (IS(off)) (Max): | 550pA |
| Crosstalk: | -80dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
