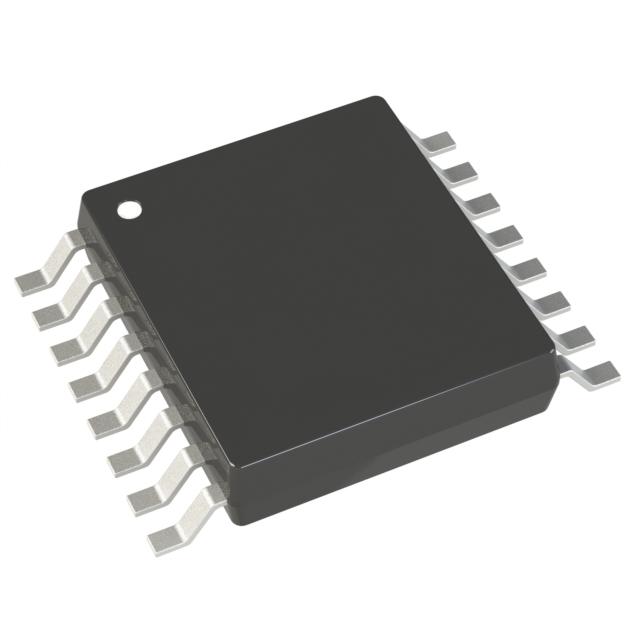

ADG1613BRUZ
IC SW SPST-NO/NC 1.1OHM 16TSSOP
| Part Description |
4 Circuit IC Switch 1:1 1.1Ohm 16-TSSOP |
|---|---|
| Quantity | 538 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Datasheet |
Specifications
| Part Package | 16-TSSOP (0.173″”, 4.40mm Width) |
|---|---|
| Device Package | 16-TSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Switch Circuit: | SPST – NO/NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon): | 30mOhm |
| Voltage – Supply, Single (V+): | 3.3V ~ 16V |
| Voltage – Supply, Dual (V±): | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max): | 156ns, 87ns |
| -3db Bandwidth: | 38MHz |
| Charge Injection: | 170pC |
| Channel Capacitance (CS(off), CD(off)): | 60pF, 60pF |
| Current – Leakage (IS(off)) (Max): | 300pA |
| Crosstalk: | -110dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
