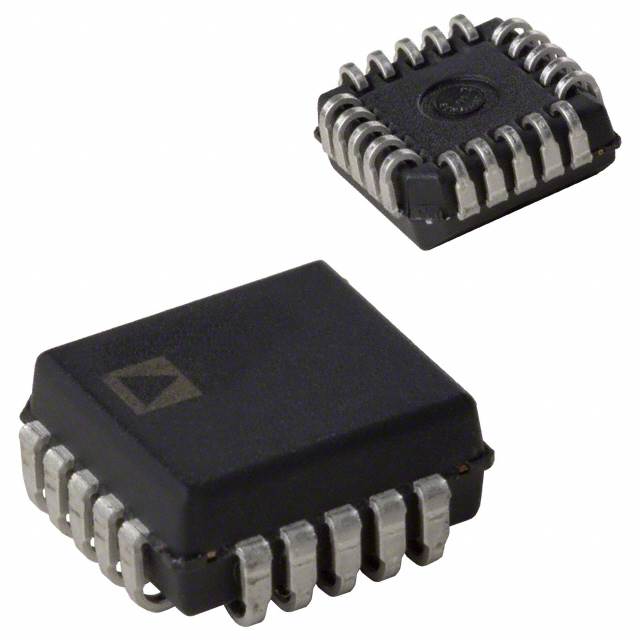

ADG201HSKP
IC SWITCH SPST-NCX4 50OHM 20PLCC
| Part Description |
4 Circuit IC Switch 1:1 50Ohm 20-PLCC (9x9) |
|---|---|
| Quantity | 1,018 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 20-LCC (J-Lead) |
|---|---|
| Device Package | 20-PLCC (9×9) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 50Ohm |
| Channel-to-Channel Matching (ΔRon): | 1.5Ohm |
| Voltage – Supply, Single (V+): | 10.8V ~ 16.5V |
| Voltage – Supply, Dual (V±): | ±13.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max): | 50ns, 50ns |
| Charge Injection: | 10pC |
| Channel Capacitance (CS(off), CD(off)): | 10pF, 10pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | -86dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
