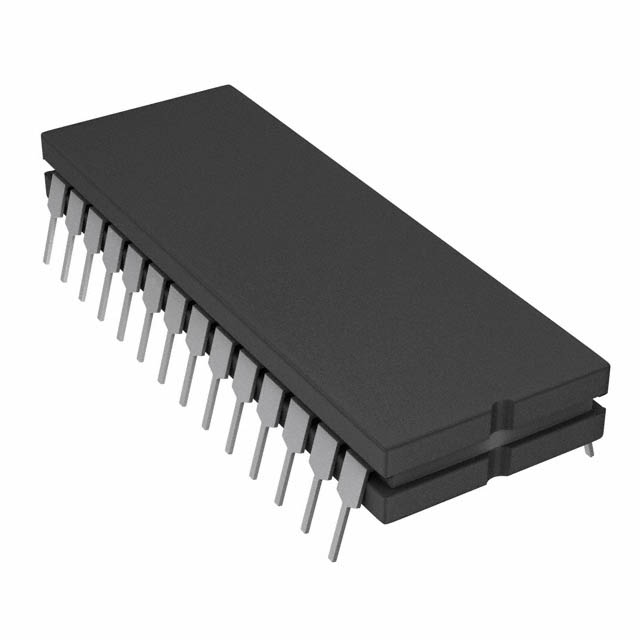

ADG526ABQ
IC MUX 16:1 450OHM 28CDIP
| Part Description |
1 Circuit IC Switch 16:1 450Ohm 28-CDIP |
|---|---|
| Quantity | 426 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 28-CDIP (0.600″”, 15.24mm) |
|---|---|
| Device Package | 28-CDIP |
| Mounting Method | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Multiplexer/Demultiplexer Circuit: | 16:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 450Ohm |
| Channel-to-Channel Matching (ΔRon): | 22.5Ohm |
| Voltage – Supply, Single (V+): | 10.8V ~ 16.5V |
| Voltage – Supply, Dual (V±): | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max): | 300ns, 300ns |
| Charge Injection: | 4pC |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 44pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
