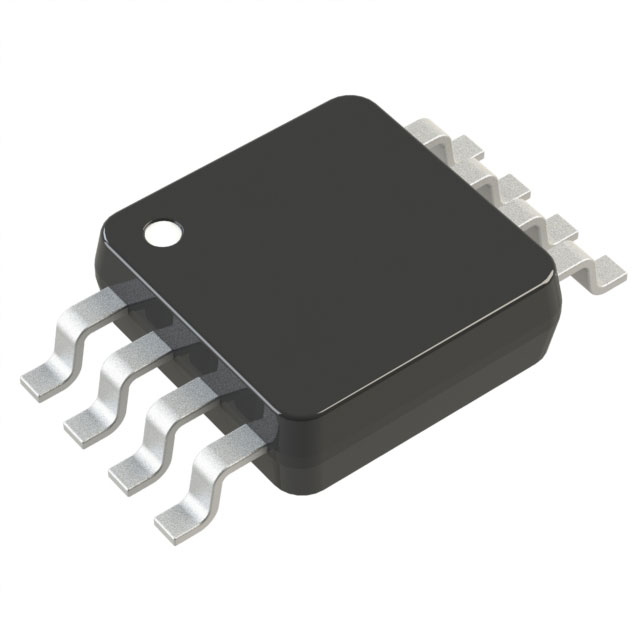

ADG701LBRMZ-REEL
IC SWITCH SPST-NO X 1 3OHM 8MSOP
| Part Description |
1 Circuit IC Switch 1:1 3Ohm 8-MSOP |
|---|---|
| Quantity | 191 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 8-TSSOP, 8-MSOP (0.118″”, 3.00mm Width) |
|---|---|
| Device Package | 8-MSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 3Ohm |
| Voltage – Supply, Single (V+): | 1.8V ~ 5V |
| Switch Time (Ton, Toff) (Max): | 12ns, 8ns (Typ) |
| -3db Bandwidth: | 200MHz |
| Charge Injection: | 5pC |
| Channel Capacitance (CS(off), CD(off)): | 17pF, 17pF |
| Current – Leakage (IS(off)) (Max): | 250pA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
