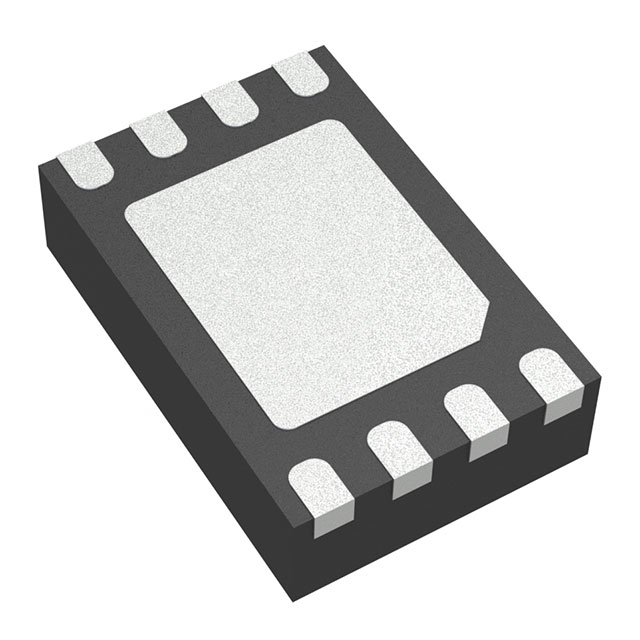

ADG722ACPZ-REEL7
IC SWITCH SPST-NCX2 4OHM 8LFCSP
| Part Description |
2 Circuit IC Switch 1:1 4Ohm 8-LFCSP-WD (2x3) |
|---|---|
| Quantity | 854 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 8-WFDFN Exposed Pad, CSP |
|---|---|
| Device Package | 8-LFCSP-WD (2×3) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 4Ohm |
| Channel-to-Channel Matching (ΔRon): | 300mOhm |
| Voltage – Supply, Single (V+): | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 14ns, 6ns (Typ) |
| -3db Bandwidth: | 200MHz |
| Charge Injection: | 2pC |
| Channel Capacitance (CS(off), CD(off)): | 7pF, 7pF |
| Current – Leakage (IS(off)) (Max): | 250pA |
| Crosstalk: | -97dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
