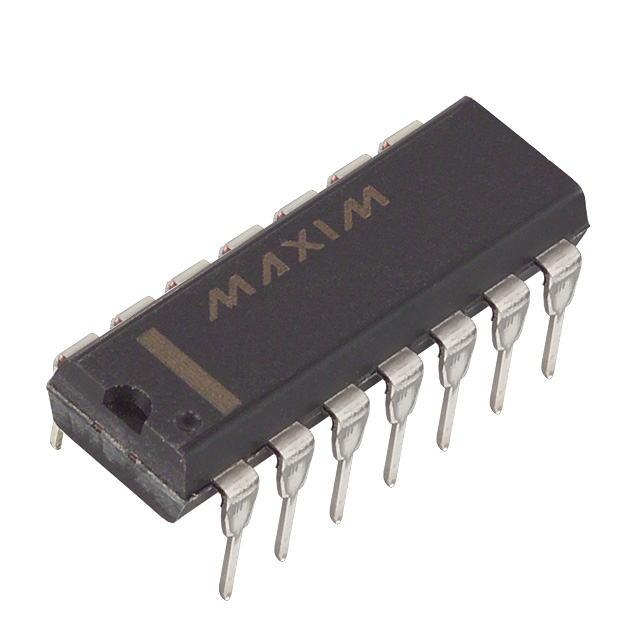

DG302ACJ+
IC SWITCH DPST-NOX2 50OHM 14DIP
| Part Description |
2 Circuit IC Switch 2:1 50Ohm 14-PDIP |
|---|---|
| Quantity | 1,163 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 14 Weeks |
| Datasheet |
Specifications
| Part Package | 14-DIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 14-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Switch Circuit: | DPST – NO |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 50Ohm |
| Voltage – Supply, Dual (V±): | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max): | 300ns, 250ns |
| Charge Injection: | 12pC |
| Channel Capacitance (CS(off), CD(off)): | 14pF, 14pF |
| Current – Leakage (IS(off)) (Max): | 5nA |
| Crosstalk: | -74dB @ 500kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
