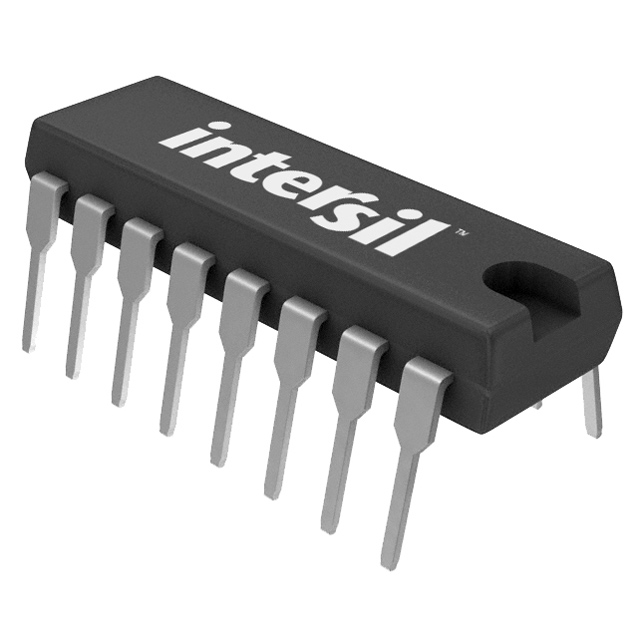

DG409DJZ
IC SWITCH SP4T X 2 100OHM 16DIP
| Part Description |
2 Circuit IC Switch 4:1 100Ohm 16-PDIP |
|---|---|
| Quantity | 805 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-DIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 16-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 15Ohm (Max) |
| Voltage – Supply, Single (V+): | 5V ~ 34V |
| Voltage – Supply, Dual (V±): | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max): | 150ns, 150ns |
| Charge Injection: | 20pC |
| Channel Capacitance (CS(off), CD(off)): | 3pF, 14pF |
| Current – Leakage (IS(off)) (Max): | 500pA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
