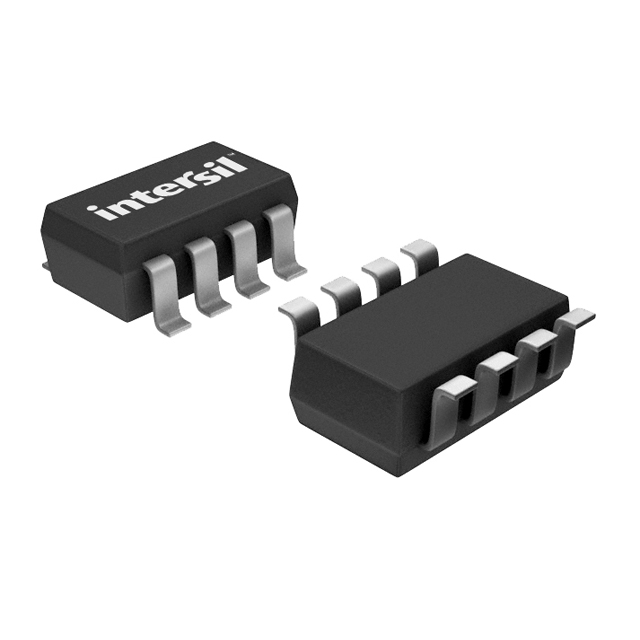

ISL43120IHZ-T
IC SWITCH SPST-NOX2 20OHM SOT23
| Part Description |
2 Circuit IC Switch 1:1 20Ohm SOT-23-8 |
|---|---|
| Quantity | 658 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 36 Weeks |
| Datasheet |
Specifications
| Part Package | SOT-23-8 |
|---|---|
| Device Package | SOT-23-8 |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 20Ohm |
| Channel-to-Channel Matching (ΔRon): | 800mOhm |
| Voltage – Supply, Single (V+): | 2.7V ~ 12V |
| Switch Time (Ton, Toff) (Max): | 35ns, 30ns |
| Charge Injection: | 5pC |
| Channel Capacitance (CS(off), CD(off)): | 8pF, 8pF |
| Current – Leakage (IS(off)) (Max): | 100pA |
| Crosstalk: | -105dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
