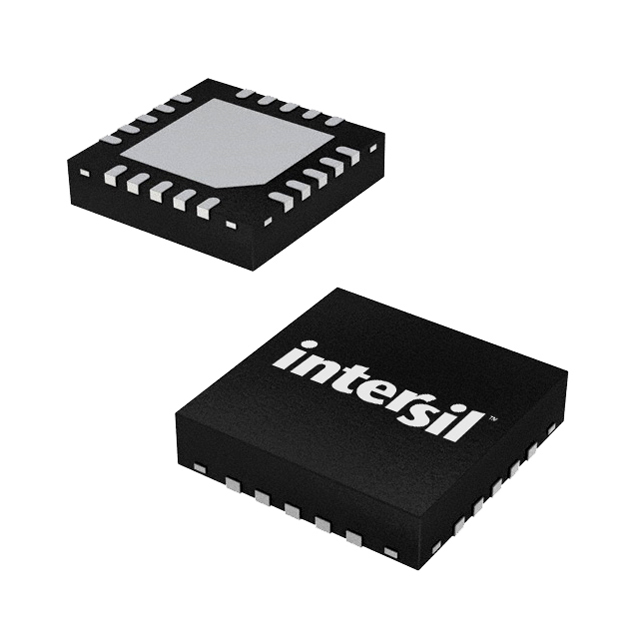

ISL43240IRZ
IC SWITCH SPDT X 4 25OHM 20QFN
| Part Description |
4 Circuit IC Switch 2:1 25Ohm 20-QFN (4x4) |
|---|---|
| Quantity | 1,064 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 20-VFQFN Exposed Pad |
|---|---|
| Device Package | 20-QFN (4×4) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 25Ohm |
| Channel-to-Channel Matching (ΔRon): | 500mOhm |
| Voltage – Supply, Single (V+): | 2.7V ~ 12V |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max): | 65ns, 50ns |
| Charge Injection: | 5pC (Max) |
| Channel Capacitance (CS(off), CD(off)): | 10pF, 10pF |
| Current – Leakage (IS(off)) (Max): | 200pA |
| Crosstalk: | -92dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
