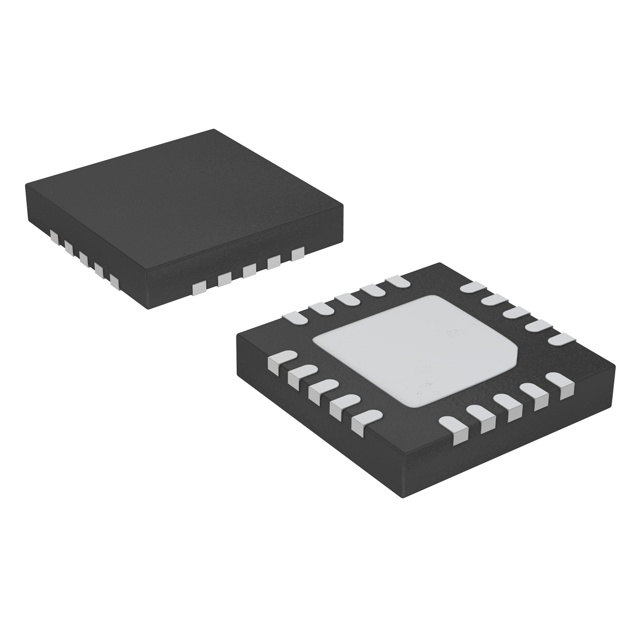

ISL43841IRZ-T
IC SWITCH SP4T X 2 50OHM 20QFN
| Part Description |
2 Circuit IC Switch 4:1 50Ohm 20-QFN (4x4) |
|---|---|
| Quantity | 755 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 20-VFQFN Exposed Pad |
|---|---|
| Device Package | 20-QFN (4×4) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 50Ohm |
| Channel-to-Channel Matching (ΔRon): | 1.3Ohm |
| Voltage – Supply, Single (V+): | 2.7V ~ 12V |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| Charge Injection: | 0.3pC |
| Channel Capacitance (CS(off), CD(off)): | 3pF, 12pF |
| Current – Leakage (IS(off)) (Max): | 100pA |
| Crosstalk: | -110dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
