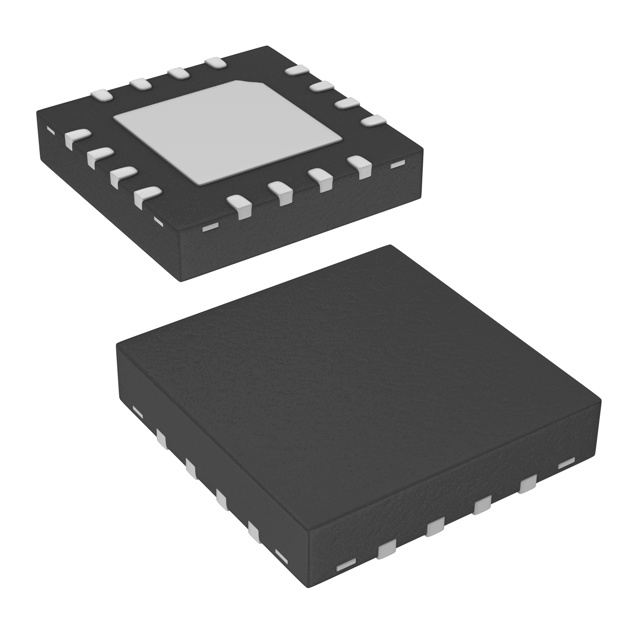

ISL43L841IRZ
IC SWITCH SP4TX2 480MOHM 16TQFN
| Part Description |
2 Circuit IC Switch 4:1 480mOhm (Typ) 16-TQFN (3x3) |
|---|---|
| Quantity | 879 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-WFQFN Exposed Pad |
|---|---|
| Device Package | 16-TQFN (3×3) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 480mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon): | 120mOhm |
| Voltage – Supply, Single (V+): | 1.65V ~ 4.5V |
| Switch Time (Ton, Toff) (Max): | 34ns, 24ns |
| Charge Injection: | -65pC |
| Channel Capacitance (CS(off), CD(off)): | 62pF, 218pF |
| Current – Leakage (IS(off)) (Max): | 50nA |
| Crosstalk: | -100dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 2 (1 Year) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
