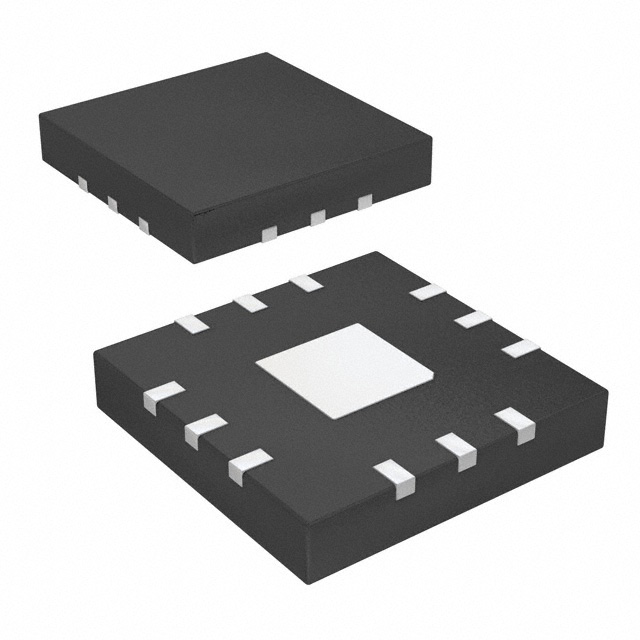

ISL54233IRTZ-T7A
IC SWITCH SP3T X 2 15OHM 12TQFN
| Part Description |
2 Circuit IC Switch 3:1 15Ohm 12-TQFN (3x3) |
|---|---|
| Quantity | 926 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications
| Part Package | 12-WFQFN Exposed Pad |
|---|---|
| Device Package | 12-TQFN (3×3) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SP3T |
| Multiplexer/Demultiplexer Circuit: | 3:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 15Ohm |
| Channel-to-Channel Matching (ΔRon): | 70mOhm |
| Voltage – Supply, Single (V+): | 2.7V ~ 4.6V |
| -3db Bandwidth: | 1.6GHz |
| Channel Capacitance (CS(off), CD(off)): | 3pF |
| Current – Leakage (IS(off)) (Max): | 15nA |
| Crosstalk: | -36dB @ 240MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
