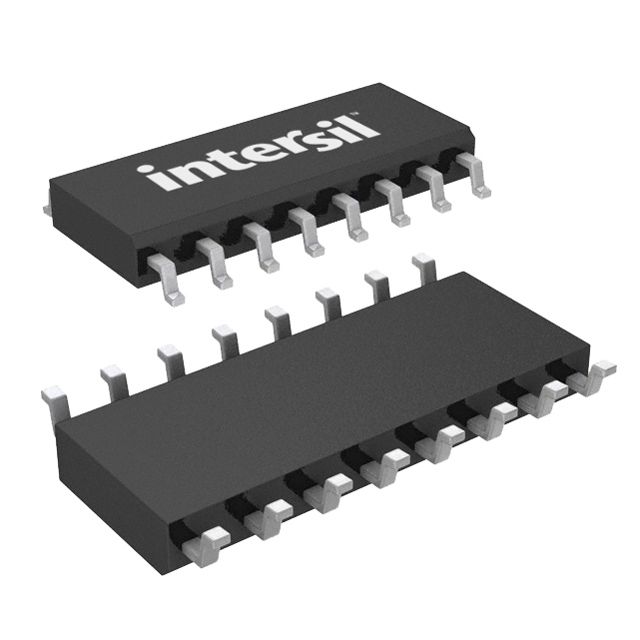

ISL8393IBZ
LOW-VOLTAGE, SINGLE AND DUAL SUP
| Part Description |
Circuit IC Switch |
|---|---|
| Quantity | 468 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 1 Weeks |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Channel-to-Channel Matching (ΔRon): | 300mOhm |
| Charge Injection: | 5pC (Max) |
| Crosstalk: | -89dB @ 1MHz |
| Current – Leakage (IS(off)) (Max): | 100pA |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 35Ohm |
| Switch Circuit: | SPST – NO/NC |
| Switch Time (Ton, Toff) (Max): | 130ns, 75ns |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| Voltage – Supply, Single (V+): | 2V ~ 12V |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | Vendor Undefined |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
