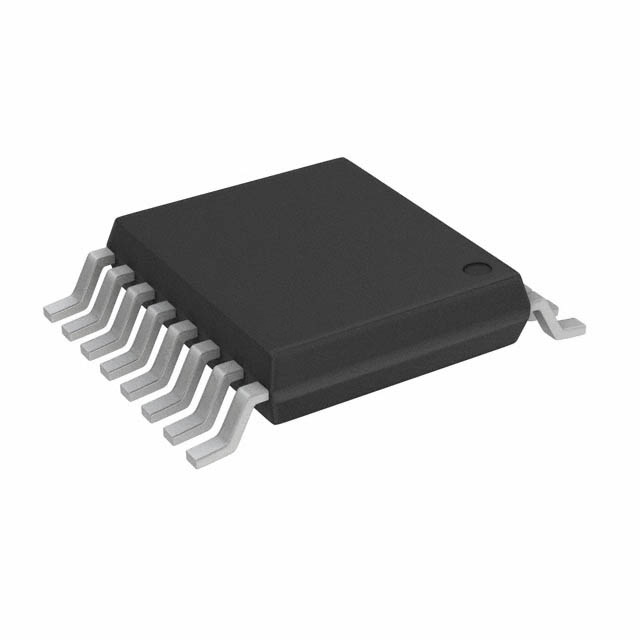

ISL84523IV
IC SW SPST-NO/NC 100OHM 16TSSOP
| Part Description |
4 Circuit IC Switch 1:1 100Ohm 16-TSSOP |
|---|---|
| Quantity | 639 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 16-TSSOP (0.173″”, 4.40mm Width) |
|---|---|
| Device Package | 16-TSSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – NO/NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 100Ohm |
| Channel-to-Channel Matching (ΔRon): | 1Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 12V |
| Voltage – Supply, Dual (V±): | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max): | 80ns, 30ns |
| Charge Injection: | 1pC |
| Channel Capacitance (CS(off), CD(off)): | 2pF, 2pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | -90dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
