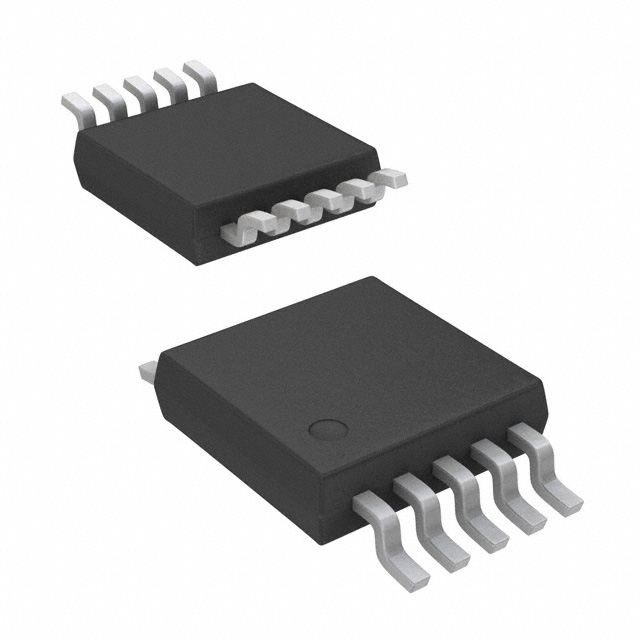

ISL84525IU
IC SWITCH DPDT X 2 150OHM 10MSOP
| Part Description |
2 Circuit IC Switch 2:2 150Ohm 10-MSOP |
|---|---|
| Quantity | 761 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Renesas Electronics Corporation |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 10-TFSOP, 10-MSOP (0.118″”, 3.00mm Width) |
|---|---|
| Device Package | 10-MSOP |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | DPDT |
| Multiplexer/Demultiplexer Circuit: | 2:2 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 150Ohm |
| Channel-to-Channel Matching (ΔRon): | 2Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 12V |
| Switch Time (Ton, Toff) (Max): | 150ns, 120ns |
| Charge Injection: | 0.8pC |
| Channel Capacitance (CS(off), CD(off)): | 4pF, 14pF |
| Current – Leakage (IS(off)) (Max): | 1nA |
| Crosstalk: | -85dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
