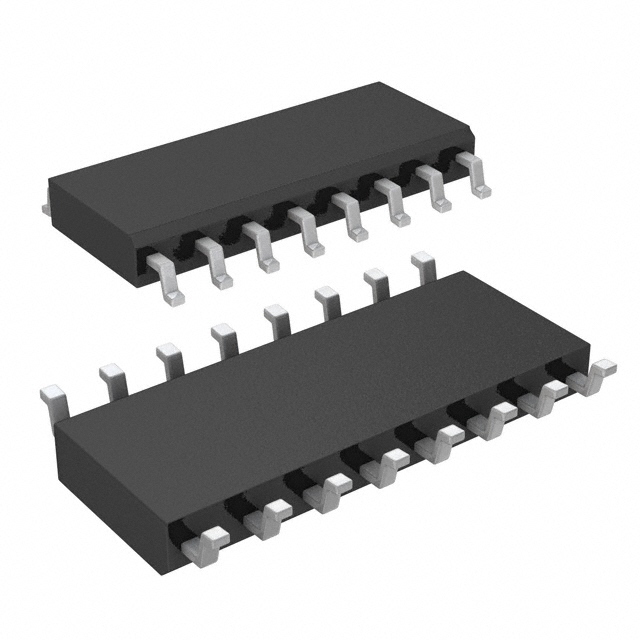

MAX314CSE+T
IC SW SPST-NO/NCX4 10OHM 16SOIC
| Part Description |
4 Circuit IC Switch 1:1 10Ohm 16-SOIC |
|---|---|
| Quantity | 216 Available (as of May 5, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 17 Weeks |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Switch Circuit: | SPST – NO/NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 10Ohm |
| Channel-to-Channel Matching (ΔRon): | 300mOhm |
| Voltage – Supply, Single (V+): | 4.5V ~ 30V |
| Voltage – Supply, Dual (V±): | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max): | 225ns, 185ns |
| Charge Injection: | 20pC |
| Channel Capacitance (CS(off), CD(off)): | 15pF, 15pF |
| Current – Leakage (IS(off)) (Max): | 500pA |
| Crosstalk: | -85dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
