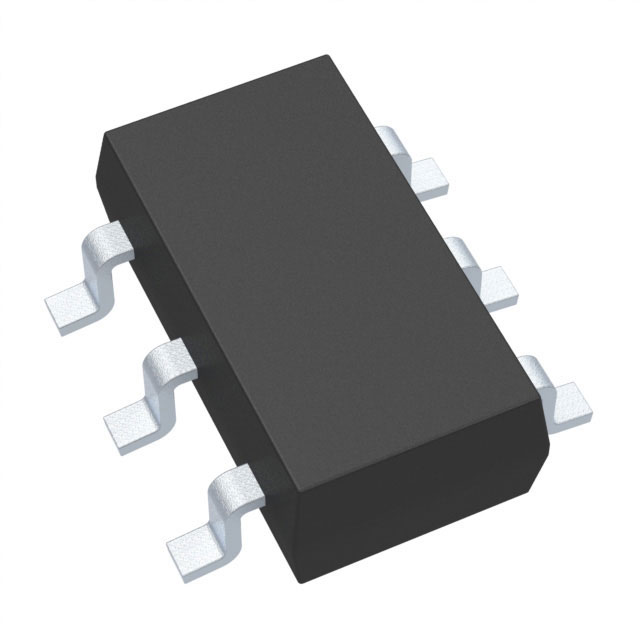

MAX3295AUT+TCGK
IC SWITCH SP4T X 2 2.5KOHM SOT6
| Part Description |
2 Circuit IC Switch 4:1 2.5kOhm SOT-6 |
|---|---|
| Quantity | 451 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | SOT-23-6 |
|---|---|
| Device Package | SOT-6 |
| Mounting Method | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 4:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 2.5kOhm |
| Channel-to-Channel Matching (ΔRon): | 50Ohm |
| Voltage – Supply, Single (V+): | 10V ~ 30V |
| Voltage – Supply, Dual (V±): | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max): | 1µs, 700ns |
| Charge Injection: | 2pC |
| Channel Capacitance (CS(off), CD(off)): | 1.8pF, 4pF |
| Current – Leakage (IS(off)) (Max): | 10pA |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | OBSOLETE |
| HTS Code | 0000.00.0000 |
