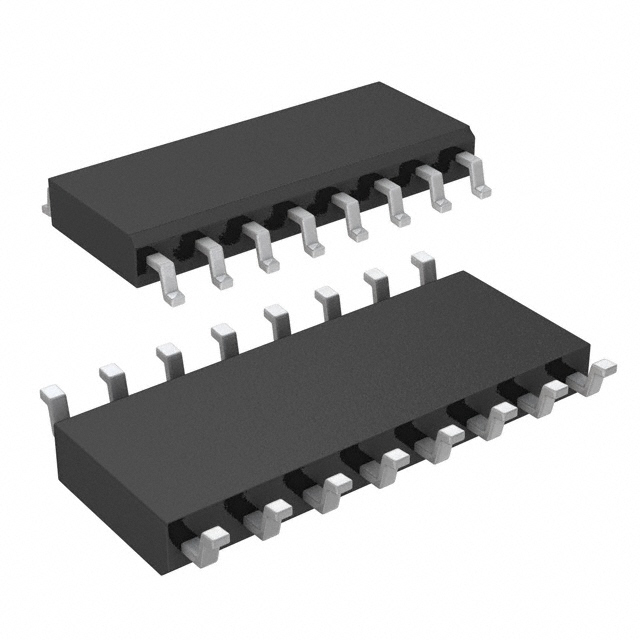

MAX4591CSE
IC SWITCH SPST-NCX4 20OHM 16SOIC
| Part Description |
4 Circuit IC Switch 1:1 20Ohm 16-SOIC |
|---|---|
| Quantity | 955 Available (as of May 5, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-SOIC (0.154″”, 3.90mm Width) |
|---|---|
| Device Package | 16-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Switch Circuit: | SPST – NC |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 20Ohm |
| Channel-to-Channel Matching (ΔRon): | 500mOhm |
| Voltage – Supply, Single (V+): | 3V ~ 16V |
| Switch Time (Ton, Toff) (Max): | 80ns, 45ns |
| Charge Injection: | 2pC |
| Channel Capacitance (CS(off), CD(off)): | 9pF, 9pF |
| Current – Leakage (IS(off)) (Max): | 100pA |
| Crosstalk: | -85dB @ 10MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
