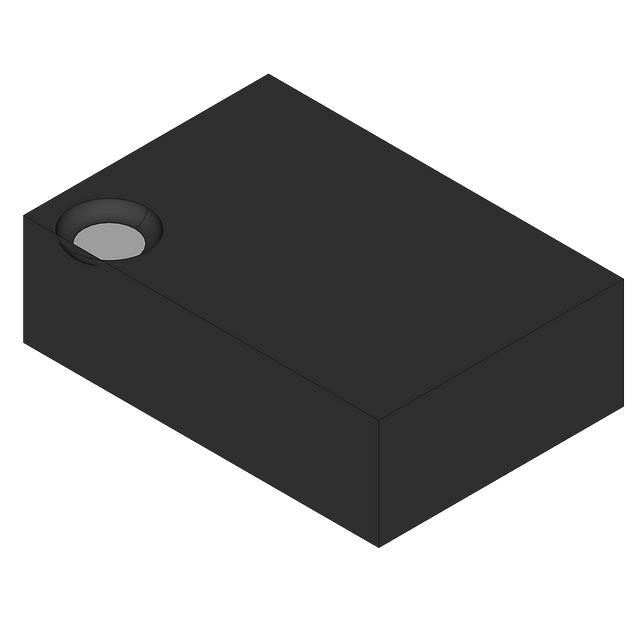

MAX4594ELT+
MAX4594 LOW-VOLTAGE, SINGLE-SUPP
| Part Description |
1 Circuit IC Switch 1:1 10Ohm 6-µDFN (1.5x1) |
|---|---|
| Quantity | 300 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 0 Weeks |
| Datasheet |
Specifications
| Part Package | 6-WFDFN |
|---|---|
| Device Package | 6-µDFN (1.5×1) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPST – Open |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 10Ohm |
| Voltage – Supply, Single (V+): | 2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 35ns, 40ns |
| -3db Bandwidth: | 300MHz |
| Charge Injection: | 2pC |
| Channel Capacitance (CS(off), CD(off)): | 8pF, 8pF |
| Current – Leakage (IS(off)) (Max): | 500pA |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
