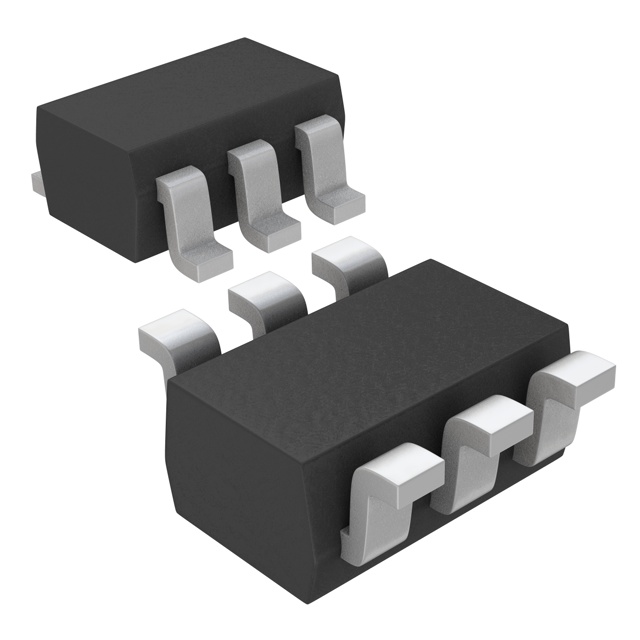

MAX4729EXT+
IC SWITCH SPDT X 1 5.5OHM SC70-6
| Part Description |
1 Circuit IC Switch 2:1 5.5Ohm SC-70-6 |
|---|---|
| Quantity | 1,182 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 97 Weeks |
Specifications
| Part Package | 6-TSSOP, SC-88, SOT-363 |
|---|---|
| Device Package | SC-70-6 |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon): | 50mOhm |
| Voltage – Supply, Single (V+): | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 45ns, 26ns |
| -3db Bandwidth: | 300MHz |
| Charge Injection: | 3pC |
| Channel Capacitance (CS(off), CD(off)): | 6.5pF |
| Current – Leakage (IS(off)) (Max): | 2nA |
| Crosstalk: | -67dB @ 1MHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
