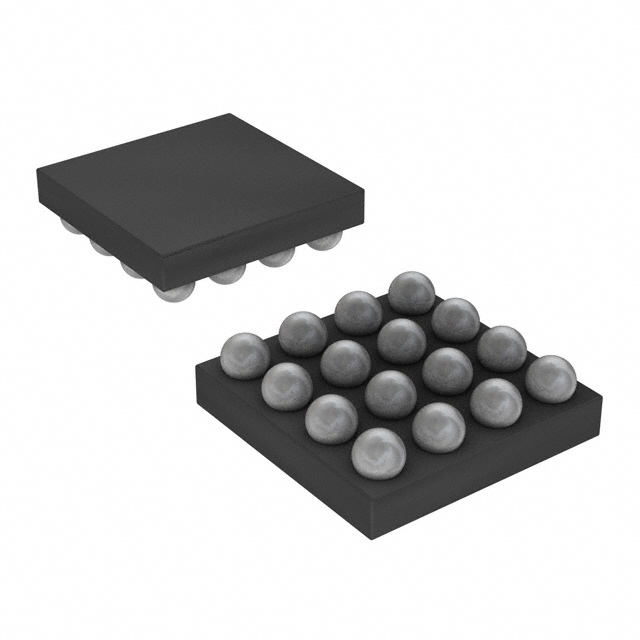

MAX4754AEBE+T
IC SWITCH SPDTX4 850MOHM 16UCSP
| Part Description |
4 Circuit IC Switch 2:1 850mOhm 16-UCSP (2x2) |
|---|---|
| Quantity | 1,946 Available (as of May 6, 2026) |
| Product Category | Analog Switches, Multiplexers, Demultiplexers |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | N/A |
| Datasheet |
Specifications
| Part Package | 16-WFBGA, CSPBGA |
|---|---|
| Device Package | 16-UCSP (2×2) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Switch Circuit: | SPDT |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Number of Circuits: | 4 |
| On-State Resistance (Max): | 850mOhm |
| Channel-to-Channel Matching (ΔRon): | 100mOhm |
| Voltage – Supply, Single (V+): | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 140ns, 50ns |
| -3db Bandwidth: | 10MHz |
| Charge Injection: | 300pC |
| Channel Capacitance (CS(off), CD(off)): | 180pF, 300pF |
| Current – Leakage (IS(off)) (Max): | 4nA |
| Crosstalk: | -90dB @ 100kHz |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | EAR99 |
| HTS Code | 8542.39.0001 |
