A40MX02-1VQG80I

The A40MX02-1VQG80I is an MX-family field programmable gate array (FPGA) in an 80-pin TQFP package. It provides a modest logic fabric—approximately 295 logic elements (295 CLBs/LABs equivalent) and around 3,000 gates—along with 57 user I/O pins, making it suitable for embedded designs that require programmable logic in a compact surface-mount package.

Designed for industrial operation, the device supports a wide supply range and a broad operating temperature window, enabling deployment in environments that require robust temperature tolerance and flexible power options.

Key Features

• Core Logic  Approximately 295 logic elements (reported as 295 CLBs/LABs) and about 3,000 gates to implement custom combinational and sequential logic functions.
• I/O  57 user I/O pins provide connectivity for peripheral interfaces, sensor inputs, and control signals in compact system designs.
• Memory  Total on-chip RAM bits reported as 0.
• Power  Wide voltage supply range from 3 V to 5.5 V to support different system power domains and legacy logic levels.

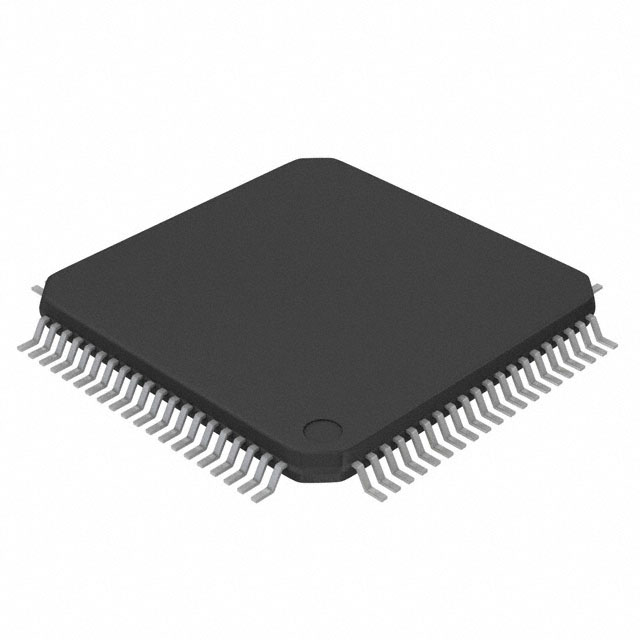

• Package & Mounting  80-pin TQFP surface-mount package (supplier package: 80-VQFP 14×14) for straightforward PCB assembly and board-level integration.
• Temperature & Grade  Industrial grade with an operating temperature range of −40 °C to 85 °C for use in temperature-demanding environments.
• Regulatory  RoHS compliant.

Unique Advantages

• Compact programmable logic: Small logic capacity and gate count make it well suited for space-constrained boards that need limited but flexible logic resources.
• Broad power compatibility: 3 V to 5.5 V supply range enables use with a variety of system power schemes and legacy I/O levels.
• Industrial temperature support: Rated −40 °C to 85 °C to maintain operation across extended environmental conditions.
• Standard surface-mount package: 80-TQFP footprint simplifies PCB layout and supports common assembly processes.
• Clear resource sizing: Published counts for logic elements, gates, and I/O facilitate quick design planning and BOM decisions.

Why Choose A40MX02-1VQG80I?

The A40MX02-1VQG80I offers a compact, industrial-grade FPGA option for applications that require modest programmable logic capacity with a generous I/O count and flexible supply voltage. Its 80-pin TQFP package and surface-mount mounting make it convenient to integrate into space- and cost-sensitive designs while meeting industrial temperature requirements.

This device is well suited to engineers and procurement teams looking for a straightforward, verifiable FPGA building block with clearly stated resource and environmental specifications for reliable, repeatable designs.

Request a quote or submit an inquiry to receive pricing and availability information for the A40MX02-1VQG80I.
