A40MX02-1VQG80M

The A40MX02-1VQG80M is an MX series Field Programmable Gate Array (FPGA) from Microchip Technology designed for applications requiring moderate programmable logic capacity and robust environmental tolerance. It provides 295 logic elements (approximately 3,000 equivalent gates) and 57 general-purpose I/O pins in a compact surface-mount package.

Engineered for applications where wide voltage tolerance and extended temperature operation are important, this military-grade FPGA supports a broad supply range and a -55 °C to 125 °C operating window, making it suitable for demanding embedded and defense-oriented systems.

Key Features

• Programmable Logic Capacity  Offers 295 logic elements delivering approximately 3,000 gates of user-configurable logic for custom digital functions and glue-logic integration.
• I/O Resources  Provides 57 user I/O pins to support multiple peripheral interfaces and signal routing requirements.

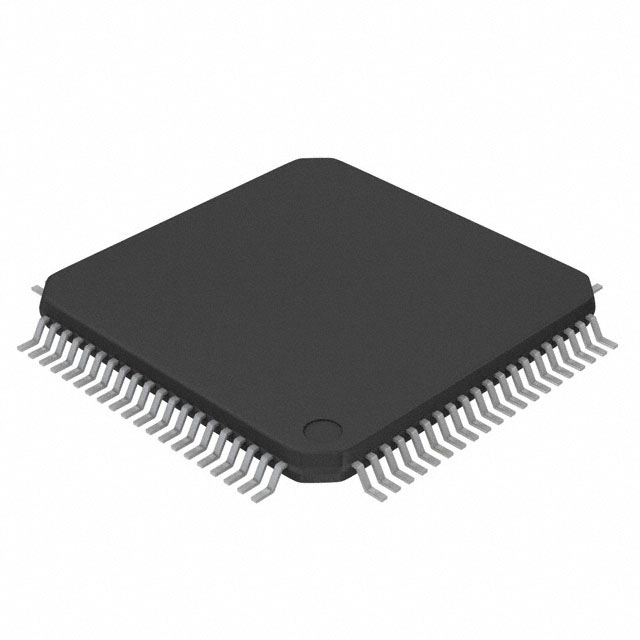

• Package and Mounting  Supplied in an 80-pin TQFP package (supplier device package listed as 80-VQFP, 14×14 mm) for compact, surface-mount PCB integration.
• Power Supply Range  Operates from 3 V to 5.5 V, accommodating a variety of system power architectures and legacy interfaces.
• Extended Temperature and Grade  Military-grade device rated for operation from -55 °C to 125 °C for use in harsh and thermally challenging environments.
• Mounting Type  Surface mount construction simplifies automated assembly and minimizes board-level footprint.
• Regulatory Compliance  RoHS compliant.

Typical Applications

• Military & Defense Systems  Used for custom digital logic, I/O buffering, and interface adaptation where military temperature grades and rugged operation are required.
• Aerospace Electronics  Suitable for avionics subsystems that require compact programmable logic with extended temperature tolerance and robust supply voltage flexibility.
• Rugged Embedded Control  Employed in embedded controllers and data acquisition modules needing moderate logic capacity and a reliable surface-mount footprint.
• Communications Equipment  Useful for protocol adaptation, control logic, and I/O management in communication and radio subsystems operating over varied supply voltages.

Unique Advantages

• Military-grade temperature rating: Enables deployment in extreme thermal environments, supporting reliable operation from -55 °C to 125 °C.
• Wide supply voltage range: 3 V to 5.5 V operation allows flexible integration with different system power domains and legacy interfaces.
• Compact surface-mount package: 80-pin TQFP (80-VQFP, 14×14 mm) balances I/O density and PCB area for space-constrained designs.
• Moderate programmable capacity: 295 logic elements (≈3,000 gates) and 57 I/Os provide the right balance of resources for control, glue logic, and small to mid-scale custom functions.
• Vendor pedigree: Manufactured by Microchip Technology, providing support and continuity within established FPGA ecosystems.
• RoHS compliant: Meets common environmental directive requirements for lead-free assembly processes.

Why Choose A40MX02-1VQG80M?

The A40MX02-1VQG80M positions itself as a reliable, military-grade FPGA option for developers needing a compact programmable logic device with robust environmental tolerance and flexible power requirements. Its combination of 295 logic elements, 57 I/O pins, and an extended operating temperature range makes it well suited for defense, aerospace, and rugged embedded designs where predictable performance and package efficiency matter.

For teams building systems that demand long-term robustness and clear specification-driven selection, this Microchip FPGA offers a straightforward, verifiable option that aligns with stringent temperature, voltage, and package constraints.

Request a quote or submit an inquiry today to learn more about availability and pricing for the A40MX02-1VQG80M.
