A40MX04-2VQG80I

The A40MX04-2VQG80I is an MX family field programmable gate array (FPGA) in an 80-pin TQFP/VQFP footprint targeted at industrial-grade embedded designs. It provides a compact, surface-mount programmable logic device with 547 logic elements (LABs/CLBs equivalent), 69 I/O pins and approximately 6,000 gates to address small to medium complexity logic integration.

Designed for operation from 3 V to 5.5 V and across an industrial temperature range of −40 °C to 85 °C, this device is suitable for applications that require robust ambient tolerance, high I/O density and a compact package profile.

Key Features

• Logic Capacity — 547 logic elements and approximately 6,000 gates for implementing combinational and sequential logic functions.
• I/O — 69 general-purpose I/O pins to support multiple interfaces and external peripherals.
• Memory — Total on-chip RAM: 0 bits; this device provides a logic-focused fabric without embedded RAM resources.
• Supply Voltage — Wide operating supply range from 3 V to 5.5 V to accommodate different system power rails.

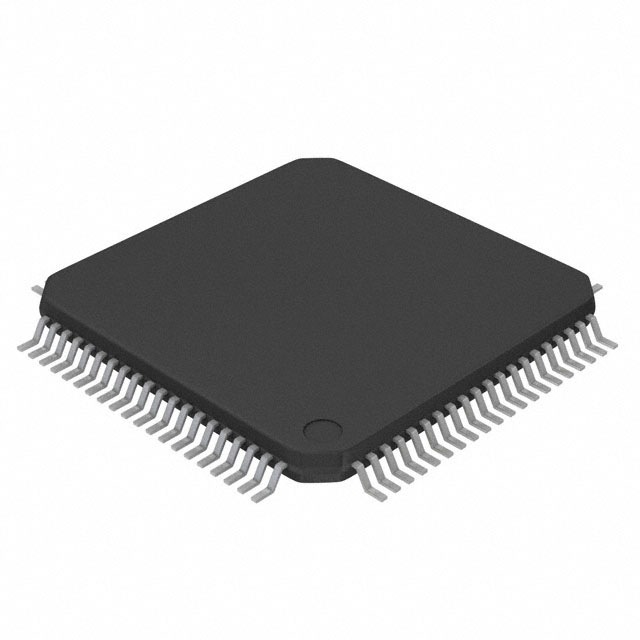

• Package & Mounting — 80-pin TQFP package (supplier device package: 80-VQFP, 14 × 14 mm) in a surface-mount form factor for compact PCB designs.
• Temperature Grade — Industrial operating range of −40 °C to 85 °C for use in commercial and industrial environments.
• Compliance — RoHS-compliant material and manufacturing status.

Typical Applications

• Industrial Control — Implement control logic, glue logic and I/O handling in automation equipment where industrial temperature rating is required.
• Embedded Systems — Add programmable logic for custom processing, protocol adaptation or peripheral aggregation in space-constrained designs.
• I/O Expansion and Interface Bridging — Use the device’s 69 I/O pins to consolidate multiple interfaces or translate between logic domains within a single package.

Unique Advantages

• Compact, high-density I/O: 69 I/O pins in an 80-pin package enable dense external connectivity without a large footprint.
• Industrial temperature tolerance: Rated for −40 °C to 85 °C to meet environmental requirements common in industrial deployments.
• Flexible supply range: Operates from 3 V to 5.5 V, allowing integration with a variety of system power architectures.
• Surface-mount convenience: 80-TQFP/80-VQFP package supports automated PCB assembly and space-constrained layouts.
• RoHS compliant: Conforms to RoHS requirements for material compliance in modern manufacturing.

Why Choose A40MX04-2VQG80I?

The A40MX04-2VQG80I positions itself as a compact, industrial-grade FPGA option for engineers needing moderate logic capacity, high I/O count and wide supply voltage support in a small surface-mount package. Its 547 logic elements and ~6,000 gates make it suitable for consolidating glue logic, interface bridging and custom control functions in embedded and industrial systems.

Choose this device when you need a programmable logic solution that balances I/O density, package compactness and industrial temperature capability while maintaining RoHS compliance for production deployments.

Request a quote or submit an inquiry to receive pricing and availability for the A40MX04-2VQG80I.
