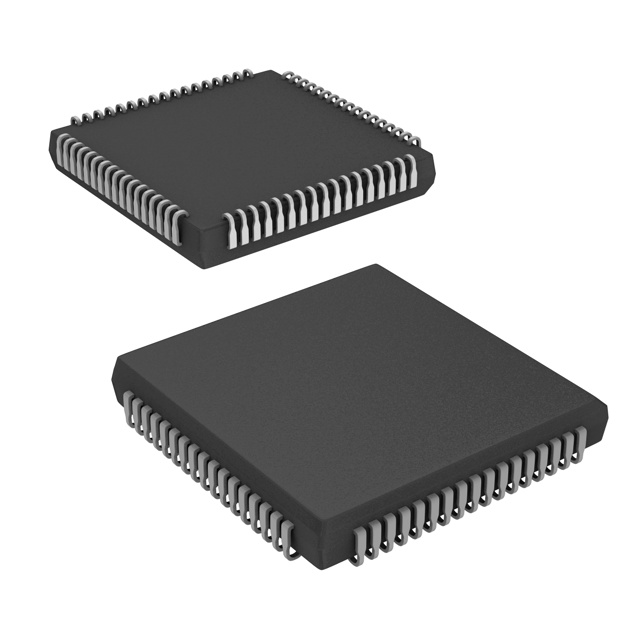

A40MX04-3PL68

The A40MX04-3PL68 is an MX Field Programmable Gate Array (FPGA) IC from Microchip Technology in a 68‑lead LCC (J‑lead) surface‑mount package. It delivers 547 logic elements (reported as LABs/CLBs), approximately 6,000 gates and 57 general‑purpose I/O pins for compact, low‑to‑medium density programmable logic implementations.

Designed for commercial applications, the device operates from a 3 V to 5.25 V supply and across a 0 °C to 70 °C temperature range. The part is RoHS compliant and provided in a 68‑PLCC style package with supplier package dimensions of 24.23 × 24.23 mm.

Key Features

• Core Logic  547 logic elements (LABs/CLBs) and 6,000 gates support combinational and sequential logic designs at low to medium density.
• I/O  57 user I/O pins provide flexible external interfacing for peripherals, sensors and bus connections.
• Memory  0 total RAM bits (no on‑chip RAM), making the device suitable for logic‑centric tasks where external memory is used if required.
• Power  Operates from 3 V to 5.25 V supplies to accommodate common commercial logic voltage rails.
• Package & Mounting  68‑lead LCC (J‑lead) surface mount package; supplier package listed as 68‑PLCC (24.23 × 24.23 mm) for board layout planning.
• Grade & Environment  Commercial grade operation with an ambient temperature range of 0 °C to 70 °C and RoHS compliance for regulatory alignment.

Typical Applications

• Interface and glue logic  Use the 57 I/O and 547 logic elements to concentrate interface glue logic between peripherals and controllers in commercial devices.
• Control and sequencing  Implement finite state machines and control logic where on‑chip RAM is not required.
• Prototyping and development  Compact package and moderate logic capacity make this FPGA suitable for early prototypes and proofs of concept in commercial product development.

Unique Advantages

• Balanced logic capacity: 547 logic elements and ~6,000 gates provide a practical resource set for modestly complex logic without the cost and size of larger FPGAs.
• Flexible I/O count: 57 I/O pins enable multiple peripheral connections and signal routing options on a single device.
• Wide supply compatibility: 3 V to 5.25 V supply range supports common commercial voltage domains, simplifying power‑rail integration.
• RoHS compliant: Conforms to RoHS requirements for regulatory and environmental compliance in commercial electronics.
• Compact PLCC packaging: 68‑lead LCC/PLCC footprint (24.23 × 24.23 mm) allows dense PCB placement while maintaining a surface‑mount assembly flow.
• Commercial temperature rating: Rated for 0 °C to 70 °C operation, matching typical commercial product environments.

Why Choose A40MX04-3PL68?

The A40MX04-3PL68 positions itself as a compact, commercial‑grade FPGA option for designers who need moderate logic density, a substantial set of I/O, and simple power integration. Its 547 logic elements and 57 I/O pins provide the resources to implement interface logic, control state machines and other glue functions within commercial devices.

This part is well suited to teams developing consumer and general commercial electronics where RoHS compliance, standard supply voltages and a PLCC surface‑mount package are important considerations. The device offers a straightforward, verifiable specification set for predictable integration into production designs.

Request a quote or submit an inquiry to receive pricing and availability for the A40MX04-3PL68 and to discuss volume options or lead‑time requirements.
