A40MX04-3PL84

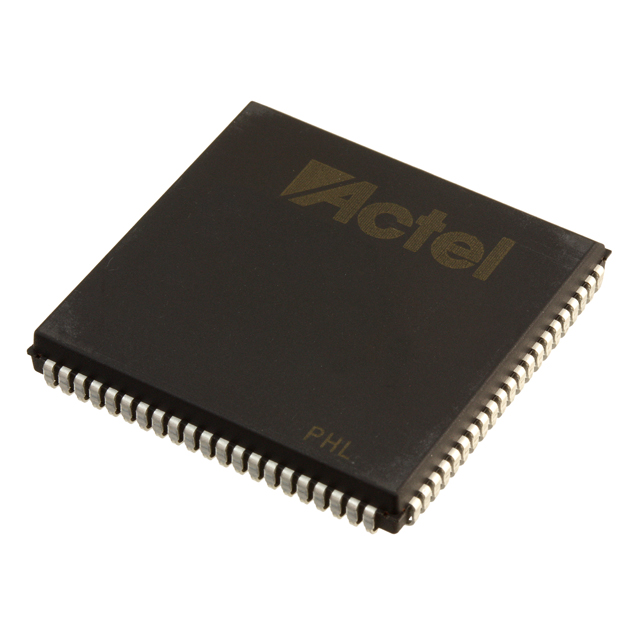

The A40MX04-3PL84 is an MX family Field Programmable Gate Array (FPGA) from Microchip Technology provided in an 84-lead LCC (J-Lead) package. It offers a moderate programmable-logic capacity with 547 logic elements and up to 69 user I/O pins for commercial embedded designs.

Designed for surface-mount assembly and operating across a 3 V to 5.25 V supply range, this device targets commercial applications that require compact, reconfigurable logic in a PLCC footprint while meeting RoHS environmental requirements.

Key Features

• Logic Capacity  547 logic elements (cells) providing approximately 6,000 equivalent gates for moderate-complexity digital functions.
• I/O  69 user I/O pins to support multiple peripheral interfaces and board-level signal routing.
• Memory  No on-chip RAM bits (Total RAM Bits: 0), enabling deterministic combinational and registered logic implementations without embedded block RAM.
• Power  Flexible supply voltage range from 3 V to 5.25 V to accommodate common commercial logic domains.
• Package & Mounting  84-LCC (J-Lead) / 84-PLCC package with 29.31 × 29.31 mm footprint; surface-mount mounting type for automated PCB assembly.
• Operating Range & Grade  Commercial grade device with an operating temperature range of 0°C to 70°C and RoHS compliance.

Typical Applications

• Custom logic and prototyping  Use the FPGA’s 547 logic elements to implement glue logic, finite state machines, and custom peripheral control in prototype or production boards.
• I/O expansion and signal routing  Leverage 69 I/O pins to consolidate interfacing tasks and simplify PCB routing between digital subsystems.
• Control and sequencing  Implement moderate-complexity control, timing, and sequencing logic in commercial embedded products running within the 0°C–70°C range.

Unique Advantages

• Moderate programmable capacity: 547 logic elements and roughly 6,000 gates support a wide range of mid-level digital designs without overprovisioning.
• Wide supply compatibility: 3 V to 5.25 V voltage support enables integration with common commercial logic families and mixed-voltage designs.
• Compact PLCC packaging: 84-LCC (J-Lead) / 84-PLCC 29.31 × 29.31 mm package provides a space-efficient footprint compatible with surface-mount assembly processes.
• High I/O count: 69 user I/O pins allow flexible interfacing to multiple peripherals and board-level interconnects.
• Commercial temperature rating: Specified 0°C to 70°C operating range for standard commercial deployments.
• RoHS compliant: Meets environmental compliance expectations for lead-free assembly and regulatory requirements.

Why Choose A40MX04-3PL84?

The A40MX04-3PL84 is positioned for engineers and procurement teams seeking a commercially graded FPGA with balanced logic capacity, a substantial I/O complement, and flexible supply voltage tolerance. Its PLCC-form factor and surface-mount compatibility make it suitable for compact board layouts and automated assembly.

Backed by Microchip Technology, this device is appropriate for designs that require dependable, reconfigurable logic resources without on-chip RAM, offering a straightforward solution for glue logic, control sequencing, and moderate-complexity digital functions in commercial products.

Request a quote or submit an inquiry to receive pricing and availability for the A40MX04-3PL84 and to discuss how this FPGA can fit your design requirements.
