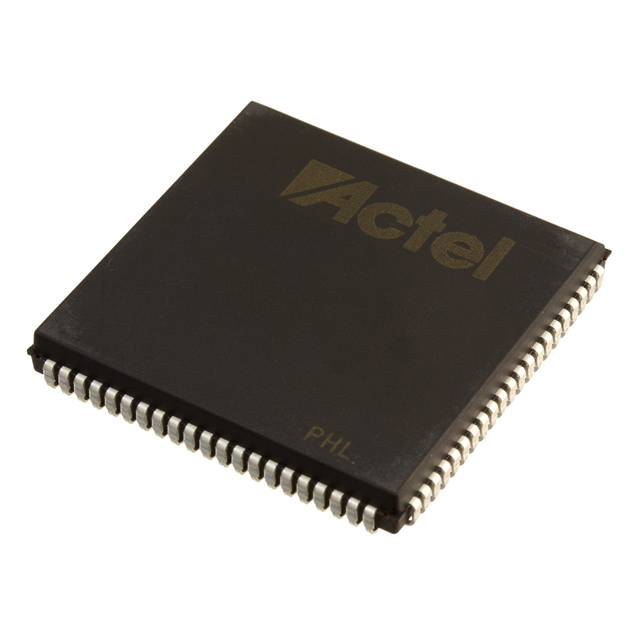

A42MX09-PLG84I

The A42MX09-PLG84I is an MX family Field Programmable Gate Array (FPGA) IC from Microchip Technology designed for surface-mount applications. It provides a moderate logic density platform—336 logic elements and approximately 14,000 gates—with up to 72 general-purpose I/O pins, making it suitable for embedded designs that require flexible I/O and on-board programmable logic.

Configured in an 84-lead LCC/J-lead package and rated for industrial temperature operation, the device supports a wide supply-voltage window for adaptable power architectures.

Key Features

• Logic Capacity  336 logic elements and approximately 14,000 gates provide a compact programmable fabric for moderate-complexity functions.
• I/O Integration  72 general-purpose I/O pins support a variety of peripheral and system interfacing requirements.
• Power Supply Range  Operates across a 3 V to 5.5 V supply range to accommodate different system power rails.
• Package and Mounting  84-lead LCC (J-lead) / 84-PLCC supplier device package with dimensions 29.31 × 29.31 mm; designed for surface-mount assembly.
• Industrial Temperature Grade  Specified for operation from −40 °C to 85 °C, suitable for industrial environment deployments.
• Environmental Compliance  RoHS compliant to meet common environmental and regulatory requirements.

Unique Advantages

• Balanced Logic and I/O  Combines 336 logic elements with 72 I/Os to support designs that need moderate programmable logic alongside substantial external interfacing.
• Flexible Power Integration  3 V to 5.5 V operating range simplifies integration in systems with legacy or varied power rails.
• Industry-Grade Thermal Range  −40 °C to 85 °C rating extends suitability to industrial applications and harsher operating environments.
• Surface-Mount PLCC Packaging  Compact 84-LCC/PLCC package (29.31 × 29.31 mm) enables board-area-efficient placement while preserving a high pin-count footprint.
• Regulatory Readiness  RoHS compliance helps satisfy environmental directives and corporate sourcing policies.

Why Choose A42MX09-PLG84I?

The A42MX09-PLG84I is positioned for engineers and procurement teams seeking a Microchip Technology FPGA that balances logic capacity and I/O count in a compact surface-mount PLCC package. Its wide supply-voltage tolerance and industrial temperature rating make it a practical choice for embedded systems where environmental robustness and flexible power integration matter.

Choose this device when you need a verified FPGA building block offering a clear, specification-driven foundation for mid-density programmable-logic designs, with the supply-voltage range, I/O count, and packaging suited to a range of industrial applications.

Request a quote or submit an inquiry for pricing and availability of the A42MX09-PLG84I to move your design forward.
