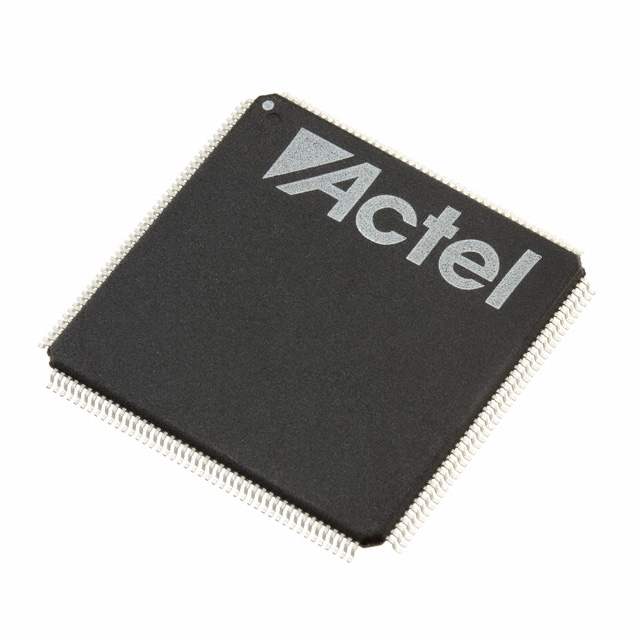

A42MX16-TQG176A

The A42MX16-TQG176A is an MX-series field programmable gate array designed for embedded logic implementations. This surface-mount FPGA provides a balance of logic density and I/O capability—including 608 logic elements, 24,000 gates and 140 I/Os—targeted at designs that require configurable digital logic in a compact 176-pin package.

Qualified to AEC-Q100 and rated for operation from -40 °C to 125 °C, the device is suitable for automotive and other harsh-environment electronic systems that demand robust temperature and qualification profiles. The device supports a broad supply range of 3.0 V to 5.25 V and is RoHS compliant.

Key Features

• Core Logic 608 logic elements and approximately 24,000 gates provide resources for implementing custom digital functions and glue logic.
• I/O Capacity 140 configurable I/O pins support broad external interfacing and signal routing for mixed-signal systems.
• Memory The device reports 0 total on-chip RAM bits; designs should plan external memory if runtime data storage is required.
• Package and Mounting Available in a 176-pin LQFP surface-mount package (supplier device package listed as 176-TQFP, 24×24), enabling compact PCB layouts.
• Power Wide supply range from 3.0 V to 5.25 V to accommodate common automotive and industrial supply rails.
• Temperature and Qualification Operating range from -40 °C to 125 °C with AEC-Q100 qualification and an automotive grade designation for reliability in demanding environments.
• Compliance RoHS compliant for regulatory and manufacturing compatibility.

Typical Applications

• Automotive Control Systems — Suited for vehicle electronics that require AEC-Q100 qualification and extended temperature operation for modules such as control units and sensor interfaces.
• Embedded Logic and Glue — Implement custom interfacing, protocol bridging, and timing logic where moderate gate count and high I/O count are required.
• Harsh-Environment Electronics — Use in systems that must operate reliably across -40 °C to 125 °C, benefiting ruggedized platform designs.

Unique Advantages

• Automotive-Qualified Silicon: AEC-Q100 qualification and automotive grade designation support deployment in automotive systems requiring component-level qualification.
• Broad I/O Count: 140 I/Os enable flexible external device interfacing and reduce the need for additional I/O expanders.
• Compact Surface-Mount Package: 176-pin LQFP (176-TQFP, 24×24) allows integration into space-constrained PCBs while maintaining ample I/O and logic.
• Wide Supply Range: 3.0 V to 5.25 V operation simplifies power rail compatibility across diverse platform designs.
• Extended Temperature Range: Rated from -40 °C to 125 °C for reliable operation in temperature-critical environments.
• Regulatory Compliance: RoHS compliance supports modern manufacturing and environmental requirements.

Why Choose A42MX16-TQG176A?

The A42MX16-TQG176A positions itself as a reliable, automotive-qualified FPGA option for designers needing a compact, I/O-rich programmable device. With 608 logic elements, 24,000 gates and 140 I/Os in a 176-pin surface-mount package, it offers a practical mix of integration and flexibility for embedded logic, interface bridging, and control tasks.

Its AEC-Q100 qualification, wide operating temperature range and RoHS compliance make it a strong choice for long-term deployments in automotive and other demanding applications where component qualification and environmental tolerance are critical.

Request a quote today to discuss pricing and availability for the A42MX16-TQG176A or to submit a procurement inquiry to our sales team.
