AGL030V5-CSG81I

The AGL030V5-CSG81I is an IGLOO Field Programmable Gate Array (FPGA) IC from Microchip Technology. It offers a compact, surface-mount FPGA solution with 768 logic elements and 66 general-purpose I/O pins in an 81‑WFBGA/CSBGA footprint.

With an operating voltage window of 1.425 V to 1.575 V and an industrial temperature rating from −40 °C to 85 °C, this device is tailored for designs that require configurable logic capacity, moderate I/O count, and a compact package while meeting RoHS compliance.

Key Features

• Logic Capacity — 768 logic elements (approximately 30,000 gates) provide a moderate density of programmable logic for glue logic, control functions, and small-to-medium FPGA tasks.
• I/O Count — 66 I/O pins support a variety of peripheral and interface connections within a compact footprint.
• Memory — No on-chip RAM (total RAM bits: 0), which is suitable for applications that use external memory or are focused on combinational and state-machine logic.

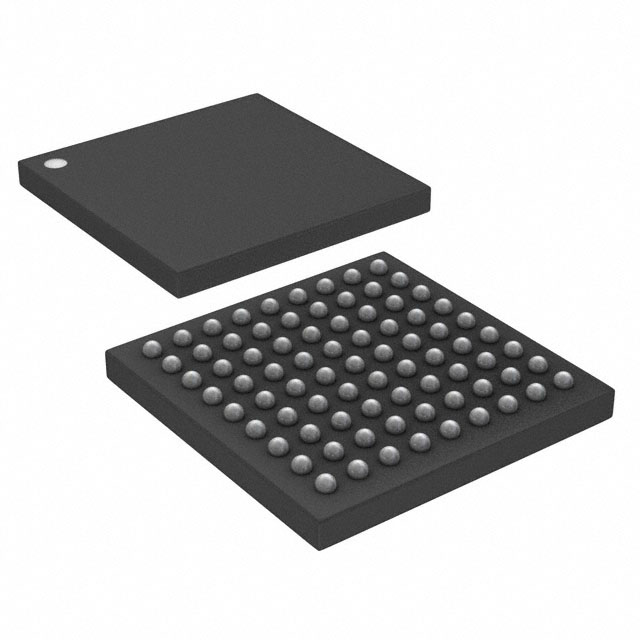

• Package & Mounting — Supplied in an 81‑WFBGA/CSBGA package with a supplier device package listed as 81‑CSP (5×5); designed for surface-mount assembly.
• Power — Designed to operate from a 1.425 V to 1.575 V supply, enabling straightforward power rail planning in compatible systems.
• Temperature & Grade — Industrial-grade device rated for operation from −40 °C to 85 °C.
• Environmental Compliance — RoHS compliant.

Unique Advantages

• Compact, board-friendly package: The 81‑WFBGA/CSBGA (81‑CSP 5×5) footprint delivers a small form factor for space-constrained designs.
• Balanced logic and I/O: 768 logic elements combined with 66 I/O pins provide a practical balance for control, interface bridging, and glue-logic tasks without unnecessary overhead.
• Industrial temperature range: −40 °C to 85 °C operation supports deployment in temperature-challenging environments.
• Predictable power requirements: A defined supply range (1.425 V to 1.575 V) simplifies power-supply selection and system integration.
• Surface-mount readiness: Designed for standard surface-mount assembly processes in compact PCB layouts.
• RoHS compliance: Meets common environmental requirements for lead-free assembly.

Why Choose AGL030V5-CSG81I?

The AGL030V5-CSG81I positions itself as a compact, industrial-grade IGLOO FPGA option for designers needing configurable logic with a moderate element count and a practical number of I/Os. Its small WFBGA/CSBGA package and defined supply and temperature ranges make it suitable for embedded systems where board space, predictable power, and industrial temperature tolerance are priorities.

This device is well matched to projects that require flexible programmable logic without on-chip RAM, offering a balance of integration and straightforward system implementation backed by Microchip Technology's IGLOO family pedigree.

Request a quote or submit an inquiry to check availability and pricing for the AGL030V5-CSG81I.
