AGL030V5-UCG81I

The AGL030V5-UCG81I is an IGLOO Field Programmable Gate Array (FPGA) IC in an 81-WFBGA (CSBGA) package. It provides 768 logic elements and 66 general-purpose I/O pins with an estimated capacity of 30,000 gates, making it suitable for compact, reconfigurable digital designs.

This device operates from a 1.425 V to 1.575 V supply and is specified for industrial temperature operation from −40 °C to 85 °C, offering a combination of moderate logic density, defined I/O count, and industrial-grade operating range.

Key Features

• Logic Capacity  Provides 768 logic elements (approx. 30,000 gates) for implementing custom digital logic and finite-state machines.
• Input/Output  66 I/O pins enable a range of peripheral and interface connections suitable for medium-density designs.
• Memory  No on-chip RAM (Total RAM Bits: 0), useful for designs that rely on external memory or minimal embedded storage.
• Power  Operates from a defined voltage range of 1.425 V to 1.575 V for predictable power-supply integration.

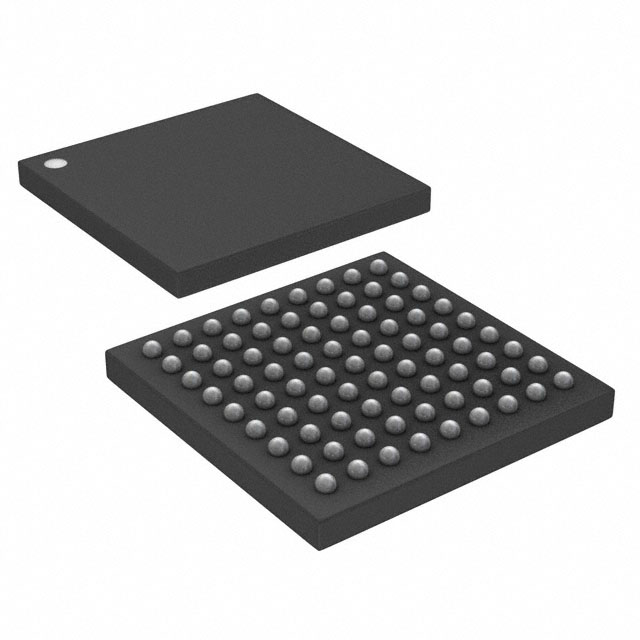

• Package and Mounting  Delivered in an 81-WFBGA (CSBGA) package with supplier device package 81-UCSP (4×4); surface-mount mounting type supports compact PCB layouts.
• Temperature and Grade  Industrial grade device rated for operation from −40 °C to 85 °C.
• Standards Compliance  RoHS compliant.

Typical Applications

• Moderate-density control logic  Use the 768 logic elements to implement control and glue-logic functions where moderate gate counts and reconfigurability are required.
• I/O-centric interfaces  Leverage 66 I/O pins for peripheral interfacing, signal aggregation, or protocol bridging in space-constrained systems.
• Compact embedded designs  The 81-WFBGA package and surface-mount mounting support small form-factor circuit boards requiring industrial temperature operation.

Unique Advantages

• Balanced logic density: 768 logic elements with approximately 30,000 gates provide a clear, quantifiable resource set for mid-range programmable logic tasks.
• Defined I/O footprint: 66 I/O pins simplify mapping between external peripherals and internal logic without overprovisioning.
• Industrial operating range: Rated for −40 °C to 85 °C, enabling deployment in environments requiring industrial temperature tolerance.
• Compact package: 81-WFBGA (CSBGA) / 81-UCSP (4×4) packaging supports dense PCB layouts while maintaining surface-mount assembly compatibility.
• Precise supply requirement: Narrow supply window (1.425 V to 1.575 V) helps ensure predictable power design and margin planning.
• RoHS compliant: Meets RoHS environmental requirements for restricted substances.

Why Choose AGL030V5-UCG81I?

AGL030V5-UCG81I positions itself as a compact, industrial-grade IGLOO FPGA option for designs that require a defined mid-level logic resource, a specific I/O count, and an industry-standard BGA footprint. Its combination of 768 logic elements, 66 I/O, roughly 30,000 gates, and a controlled supply-voltage range provides predictable integration into systems that rely on reconfigurable logic without excess complexity.

This device is appropriate for engineers and procurement teams targeting small to medium-scale programmable logic tasks in environments that demand industrial temperature operation and RoHS compliance. Its package and mounting format support compact PCB implementations while delivering the specified logic and I/O resources.

Request a quote or submit a purchase inquiry to obtain pricing and availability for the AGL030V5-UCG81I.
