AGLN060V5-CSG81I

The AGLN060V5-CSG81I is an IGLOO nano Field Programmable Gate Array (FPGA) IC designed for compact, industrial-grade embedded logic implementations. It provides 1,536 logic elements, 18,432 bits of on-chip RAM and 60 I/O pins in a 81-WFBGA (CSBGA) 5×5 CSP package.

With an industrial operating temperature range of -40 °C to 100 °C and a nominal supply range of 1.425 V to 1.575 V, this device is suited to designs that require a compact programmable logic resource with moderate capacity and robust environmental tolerance.

Key Features

• Core Logic 1,536 logic elements provide programmable combinational and sequential resources for custom logic, state machines and glue logic.
• Embedded Memory 18,432 bits of on-chip RAM for small data buffers, FIFOs or state storage within custom logic implementations.
• I/O Count 60 user I/O pins to interface with peripherals, sensors and control signals in compact systems.
• Gate Equivalent Approximately 60,000 gates of logic capacity for moderate complexity designs.
• Power Supply Single-supply operation in the range 1.425 V to 1.575 V, allowing predictable power rail design.

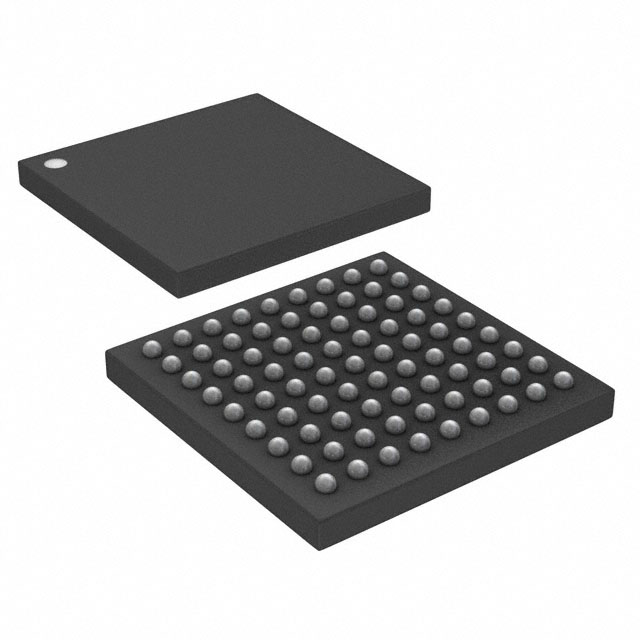

• Package and Mounting 81-WFBGA (CSBGA) 5×5 CSP package designed for surface-mount assembly, enabling dense board layouts.
• Operating Temperature Industrial temperature rating from -40 °C to 100 °C for deployment in temperature-challenging environments.
• RoHS Compliance RoHS compliant for regulatory and manufacturing environmental requirements.

Typical Applications

• Industrial Control Embedded control and interface logic in industrial systems that benefit from the device’s industrial temperature range and compact package.
• Embedded Systems Custom glue logic, peripheral aggregation and small-scale acceleration in space-constrained embedded designs.
• Sensor and I/O Aggregation Signal conditioning, simple protocol handling and I/O interfacing where 60 user I/Os and on-chip RAM meet moderate buffering needs.

Unique Advantages

• Compact, CSP Package: The 81-WFBGA (81-CSP, 5×5) package lets designers implement programmable logic in tight PCB footprints.
• Industrial Temperature Support: Rated from -40 °C to 100 °C, enabling deployment in harsher operating environments.
• Balanced Logic and Memory: 1,536 logic elements paired with 18,432 bits of RAM support a variety of small-to-moderate logic functions and buffering needs.
• Moderate I/O Density: 60 available I/Os provide flexibility for interfacing multiple peripherals and sensors without large FPGAs.
• RoHS Compliant: Conforms to RoHS requirements for environmentally conscious manufacturing.

Why Choose AGLN060V5-CSG81I?

The AGLN060V5-CSG81I positions itself as a compact, industrial-grade FPGA option for designers who need moderate programmable logic, on-chip RAM and a practical number of I/Os in a small, surface-mount package. Its defined supply range and wide operating temperature make it suitable for embedded and industrial applications requiring reliable operation across varied conditions.

This device is a fit for teams looking to reduce board-level component count with integrated programmable logic while maintaining a small PCB footprint and environmental robustness.

Request a quote or submit an inquiry to receive pricing and availability information for the AGLN060V5-CSG81I and to discuss how it can fit into your next design.
