IS21EF08G-JCLI
| Part Description |
IC FLASH 64MBIT EMMC 153FBGA |
|---|---|
| Quantity | 516 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Integrated Silicon Solution Inc |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 52 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 153-VFBGA (11.5x13) | Memory Format | FLASH | Technology | FLASH - NAND (MLC) | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 64 Gbit | Access Time | N/A | Grade | Industrial | ||
| Clock Frequency | 200 MHz | Voltage | 2.7V ~ 3.6V | Memory Type | Non-Volatile | ||
| Operating Temperature | -40°C ~ 85°C (TA) | Write Cycle Time Word Page | N/A | Packaging | 153-VFBGA | ||
| Mounting Method | Non-Volatile | Memory Interface | eMMC_5.1 | Memory Organization | 8G x 8 | ||
| Moisture Sensitivity Level | 3 (168 Hours) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | N/A | ECCN | 3A991B1A | HTS Code | 8542.32.0071 |

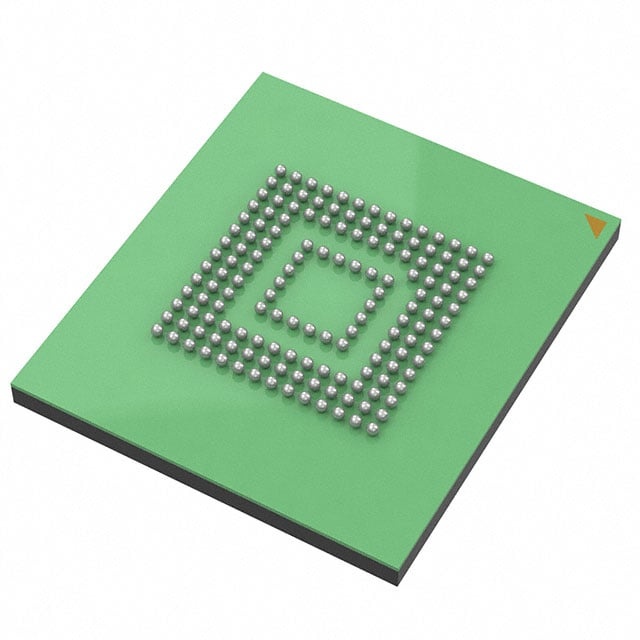

Overview of IS21EF08G-JCLI – 64 Gbit eMMC Flash, 153‑VFBGA
The IS21EF08G-JCLI from ISSI is a 64 Gbit non-volatile flash memory device based on NAND MLC technology and organized as 8G × 8. It implements an eMMC 5.1 memory interface to provide embedded storage in a compact 153‑VFBGA package.
Designed for systems that require high-density onboard flash, the device operates with a 200 MHz clock, accepts a 2.7 V to 3.6 V supply, and supports an operating temperature range of −40 °C to 85 °C, enabling deployment in a range of thermal environments.
Key Features
- Memory 64 Gbit NAND flash using MLC technology, organized as 8G × 8 to provide high-density non-volatile storage.
- Interface eMMC 5.1 memory interface for standardized embedded storage connectivity.
- Performance 200 MHz clock frequency for memory interface operations.
- Power Wide supply voltage range from 2.7 V to 3.6 V to match common embedded power rails.
- Package 153‑VFBGA package case (11.5 × 13 mm) for compact mounting in space-constrained designs.
- Operating Conditions Industrial temperature support from −40 °C to 85 °C for extended environmental ranges.
Typical Applications
- Embedded storage systems Onboard non-volatile storage requiring eMMC 5.1 connectivity and 64 Gbit capacity.
- Compact consumer devices Space-constrained designs that benefit from the 153‑VFBGA footprint and high-density flash.
- Industrial equipment Systems operating across −40 °C to 85 °C where a 2.7–3.6 V supply and reliable embedded storage are required.
Unique Advantages
- High-density storage: 64 Gbit capacity consolidates large storage requirements into a single device.
- Standard eMMC 5.1 interface: Simplifies integration with host controllers that support eMMC.
- Balanced cost and capacity: NAND MLC technology offers a trade-off between storage density and cost.
- Robust operating range: −40 °C to 85 °C supports a variety of deployment environments.
- Compact package: 153‑VFBGA (11.5 × 13 mm) minimizes board area for small form-factor designs.
- Flexible power requirements: 2.7 V to 3.6 V supply range aligns with common embedded system rails.
Why Choose IS21EF08G-JCLI?
IS21EF08G-JCLI positions itself as a high-density eMMC flash solution that combines 64 Gbit NAND MLC storage with a standard eMMC 5.1 interface in a compact 153‑VFBGA package. Its 200 MHz interface capability, wide supply voltage window, and −40 °C to 85 °C operating range make it suitable for designs that need reliable onboard non-volatile memory within constrained board space.
Manufactured by ISSI, the IS21EF08G-JCLI is appropriate for developers and procurement teams specifying embedded flash for systems that prioritize storage density, standard interface compatibility, and compact packaging.
Request a quote or submit a sales inquiry to obtain pricing and availability for the IS21EF08G-JCLI.
