W74M25JVZEIQ TR

The W74M25JVZEIQ TR is a 256 Mbit non-volatile NAND Flash device in the Winbond W74M Authentication Flash family. It combines Flash storage (32M × 8 organization) with integrated authentication primitives to strengthen code and data integrity in connected devices.

Designed for applications requiring multi-layer authenticity and anti-cloning measures, the device targets emerging IoT, mobile accessories, home automation, industrial control and smart home systems by providing on-chip authentication capabilities alongside standard SPI/Quad I/O memory access.

Key Features

• Security Engine  Includes a standard HMAC-SHA-256 crypto accelerator and 4 separate Monotonic Flash Counters that are HMAC-signed by individual secret keys, enabling multi-layer authentication and resistance to replay attacks.
• Memory  256 Mbit FLASH - NAND organized as 32M × 8, suitable for authentication data, code protection and secure storage.
• Interfaces  Supports SPI with Quad I/O, QPI and DTR modes for flexible host interfacing and higher throughput options.
• Performance  Clock frequency up to 80 MHz with an access time of 6 ns for responsive flash access under supported interface modes.
• Power  Operates from a 2.7 V to 3.6 V supply range, compatible with common 3 V system rails.

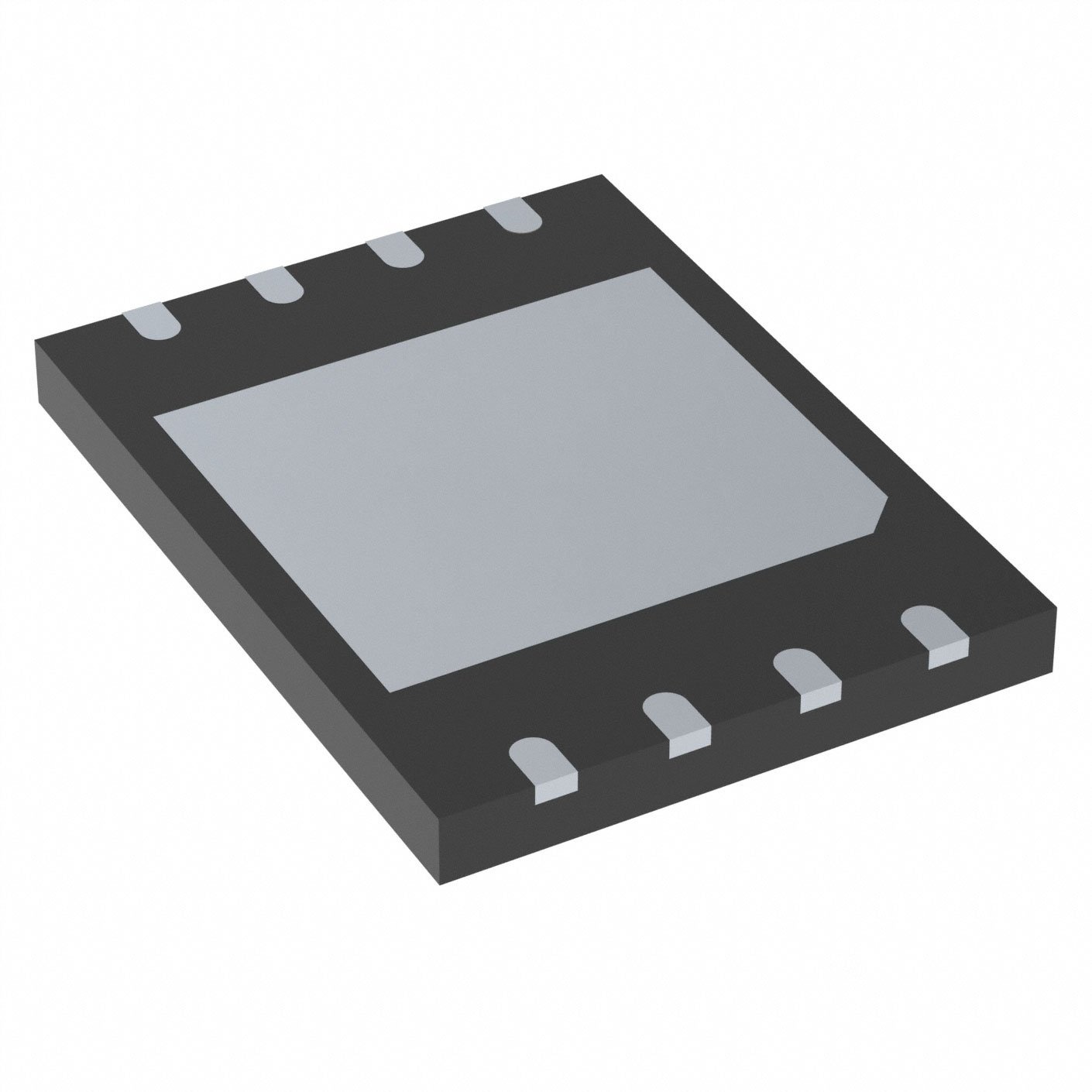

• Package  Available in an 8-lead WDFN with exposed pad (listed as 8-WSON, 8×6 mm supplier package), providing a compact footprint for space-constrained PCBA layouts.
• Operating Range  Specified for an ambient temperature range of −40 °C to 85 °C (TA).

Typical Applications

• Emerging IoT  Adds multi-layered device authentication and secure storage for connected sensors, gateways and edge modules requiring protection against cloning and replay attacks.
• Mobile Accessories  Secures firmware and accessory identity with on-chip HMAC-SHA-256 and monotonic counters to prevent unauthorized duplication of modules.
• Home Automation & Smart Home  Provides authenticated storage for device credentials and firmware integrity checks in smart locks, controllers and sensors.
• Industrial Control  Stores secure boot or configuration data with authenticated counters and flash-based non-volatile memory for control modules operating across a wide temperature range.
• IP and Module Protection  Supports PCBA anti-copy and anti-cloning use cases by combining non-volatile storage with on-chip authentication primitives.

Unique Advantages

• Built-in Authentication Engine: Provides a standard HMAC-SHA-256 crypto accelerator on-chip for authenticated operations without adding external cryptographic hardware.
• Monotonic Counters for Replay Resistance: Four HMAC-signed monotonic flash counters enable integrity checks and timestamping with resistance to replay attacks.
• Flexible High-Speed Interfaces: Quad I/O, QPI and DTR support with up to 80 MHz clock frequency offers designers multiple interface modes for performance tuning.
• Compact, Board-Level Friendly Package: Supplied in an 8-lead exposed-pad WDFN/WSON (8×6 mm) package for small form-factor designs requiring secure non-volatile storage.
• Wide Supply and Temperature Range: Operates from 2.7 V to 3.6 V and −40 °C to 85 °C, allowing integration into a broad set of 3 V systems and ambient environments.
• Backed by Memory Expertise: Part of Winbond’s W74M product family and supported by Winbond’s manufacturing and memory design capabilities as described in the product brief.

Why Choose W74M25JVZEIQ TR?

The W74M25JVZEIQ TR positions secure flash storage and authentication primitives together in a single component, simplifying designs that require non-volatile memory plus on-board integrity and anti-cloning features. Its combination of HMAC-SHA-256 acceleration, HMAC-signed monotonic counters and standard SPI/Quad interfaces makes it suitable for designers targeting authenticated storage in connected devices.

With a 256 Mbit NAND Flash array, support for multiple high-speed interface modes, a compact exposed-pad package and operation across a broad voltage and temperature range, this device is aimed at projects that need integrated security features alongside conventional flash storage backed by Winbond’s memory expertise.

Request a quote or submit an inquiry to evaluate W74M25JVZEIQ TR for your secure storage and authentication requirements.
