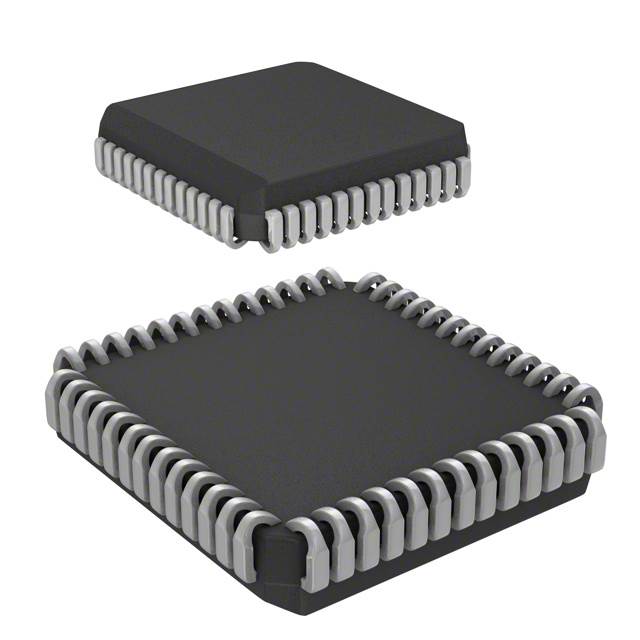

MC68HC711E9CFN3
IC MCU 8BIT 12KB OTP 52PLCC
| Part Description |
HC11 HC11 Microcontroller IC 8-Bit 3MHz 12KB (12K x 8) OTP 52-PLCC (19.1x19.1) |
|---|---|
| Quantity | 839 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Obsolete |
| Datasheet |
Specifications
| Part Package | 52-LCC (J-Lead) |
|---|---|
| Device Package | 52-PLCC (19.1×19.1) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | HC11 |
| Core Size: | 8-Bit |
| Speed: | 3MHz |
| Connectivity: | SCI, SPI |
| Peripherals: | POR, WDT |
| Number of I/O: | 38 |
| Program Memory Size: | 12KB (12K x 8) |
| Program Memory Type: | OTP |
| EEPROM Size: | 512 x 8 |
| RAM Size: | 512 x 8 |
| Voltage – Supply (Vcc/Vdd): | 4.5V ~ 5.5V |
| Data Converters: | A/D 8x8b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | RoHS non-compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
