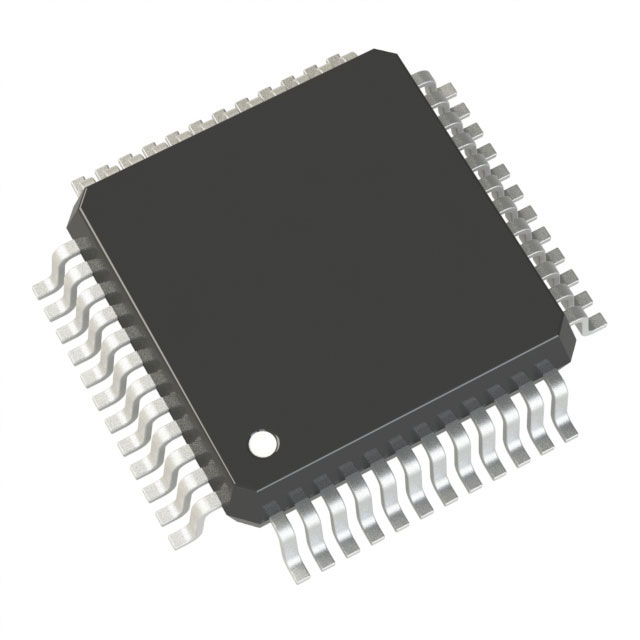

MC9S12C96MFAE
IC MCU 16BIT 96KB FLASH 48LQFP
| Part Description |
HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 96KB (96K x 8) FLASH 48-LQFP (7x7) |
|---|---|
| Quantity | 184 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 13 Weeks |
| Datasheet |
Specifications
| Part Package | 48-LQFP |
|---|---|
| Device Package | 48-LQFP (7×7) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor: | HCS12 |
| Core Size: | 16-Bit |
| Speed: | 25MHz |
| Connectivity: | CANbus, EBI/EMI, SCI, SPI |
| Peripherals: | POR, PWM, WDT |
| Number of I/O: | 31 |
| Program Memory Size: | 96KB (96K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 4K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.35V ~ 5.5V |
| Data Converters: | A/D 8x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
