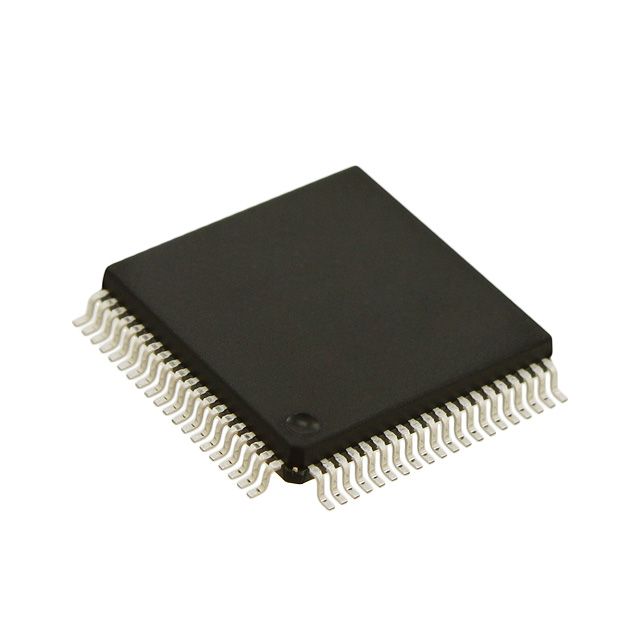

MC9S12DG256MFUE
IC MCU 16BIT 256KB FLASH 80QFP
| Part Description | HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 256KB (256K x 8) FLASH 80-QFP (14x14) |
|---|
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Leadtime | 13 Weeks |
| Datasheet | |
| Quantity | 119 Available |
Specifications
| Part Package | 80-QFP |
|---|---|
| Device Package | 80-QFP (14×14) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor: | HCS12 |
| Core Size: | 16-Bit |
| Speed: | 25MHz |
| Connectivity: | CANbus, I2C, SCI, SPI |
| Peripherals: | PWM, WDT |
| Number of I/O: | 59 |
| Program Memory Size: | 256KB (256K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 4K x 8 |
| RAM Size: | 12K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.35V ~ 5.25V |
| Data Converters: | A/D 16x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | EAR99 |
| HTS Code | 8542.31.0001 |
