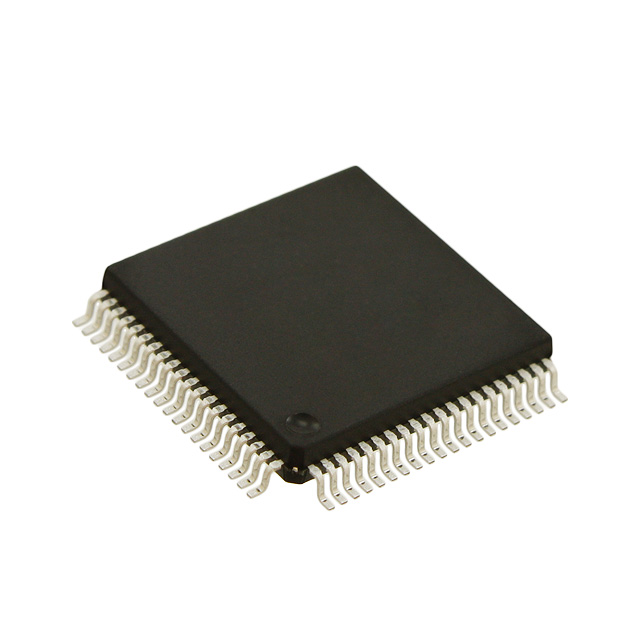

MC9S12E256CPVE
MC9S12E256CPVE - S12E 16-bit MCU
| Part Description |
S12 HCS12 Microcontroller IC 16-Bit 50MHz 256KB (256K x 8) FLASH 112-LQFP (20x20) |
|---|---|
| Quantity | 453 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP Semiconductors |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 0 Weeks |
| Datasheet |
Specifications
| Part Package | 112-LQFP |
|---|---|
| Device Package | 112-LQFP (20×20) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | S12 |
| Core Size: | 16-Bit |
| Speed: | 50MHz |
| Connectivity: | EBI/EMI, I2C, SCI, SPI |
| Peripherals: | POR, PWM, WDT |
| Number of I/O: | 90 |
| Program Memory Size: | 256KB (256K x 8) |
| Program Memory Type: | FLASH |
| RAM Size: | 16K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.35V ~ 2.75V |
| Data Converters: | A/D 16x10b; D/A 2x8b |
| Oscillator Type: | External, Internal |
Environmental
| REACH Compliance | REACH Unknown |
|---|---|
| RoHS Compliance | Unknown |
| Moisture Sensitivity Level | N/A |
| ECCN | N/A |
| HTS Code | N/A |
