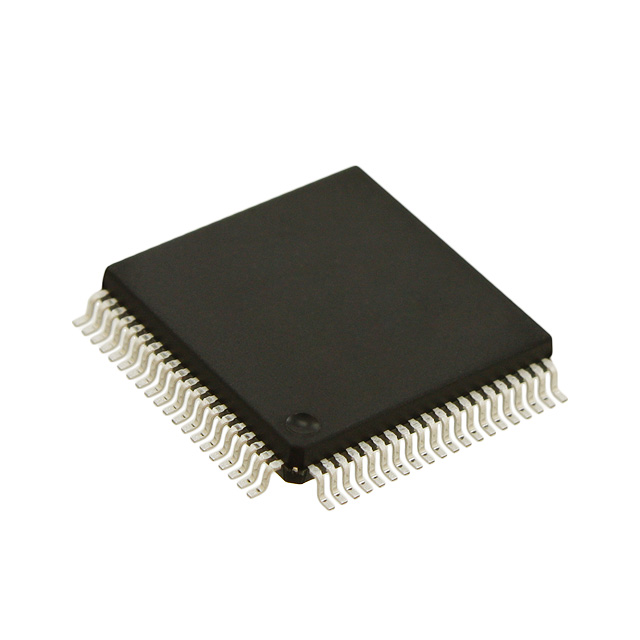

MC9S12XD256CAA
IC MCU 16BIT 256KB FLASH 80QFP
| Part Description |
HCS12X HCS12X Microcontroller IC 16-Bit 80MHz 256KB (256K x 8) FLASH 80-QFP (14x14) |
|---|---|
| Quantity | 113 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 13 Weeks |
| Datasheet |
Specifications
| Part Package | 80-QFP |
|---|---|
| Device Package | 80-QFP (14×14) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | HCS12X |
| Core Size: | 16-Bit |
| Speed: | 80MHz |
| Connectivity: | CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, SPI |
| Peripherals: | LVD, POR, PWM, WDT |
| Number of I/O: | 59 |
| Program Memory Size: | 256KB (256K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 4K x 8 |
| RAM Size: | 14K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.35V ~ 5.5V |
| Data Converters: | A/D 8x10b |
| Oscillator Type: | External |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
