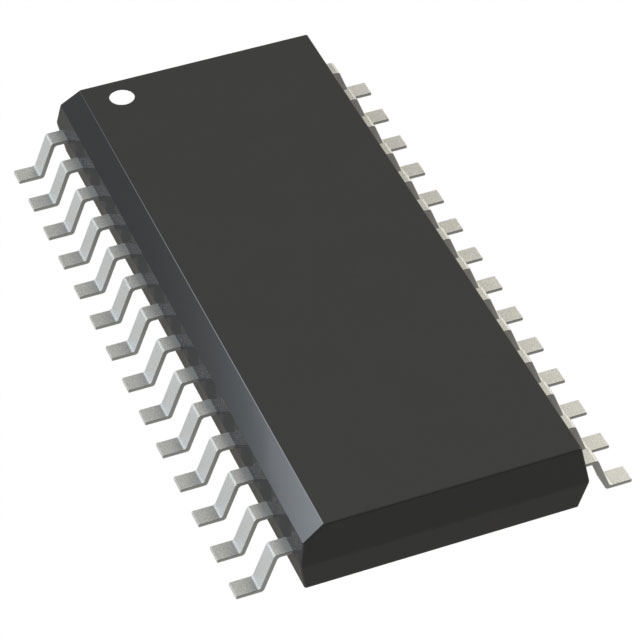

PIC16F18055-E/SO
IC MCU 8BIT 14KB FLASH 28SOIC
| Part Description |
PIC PIC® 16F Microcontroller IC 8-Bit 32MHz 14KB (14K x 8) FLASH 28-SOIC |
|---|---|
| Quantity | 714 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 4 Weeks |
| Datasheet |
Specifications
| Part Package | 28-SOIC (0.295″”, 7.50mm Width) |
|---|---|
| Device Package | 28-SOIC |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor: | PIC |
| Core Size: | 8-Bit |
| Speed: | 32MHz |
| Connectivity: | I2C, LINbus, SMBus, SPI, SSP, UART/USART |
| Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O: | 24 |
| Program Memory Size: | 14KB (14K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 128 x 8 |
| RAM Size: | 1K x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.8V ~ 5.5V |
| Data Converters: | A/D 28x10b SAR; D/A 1x8b |
| Oscillator Type: | External, Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
