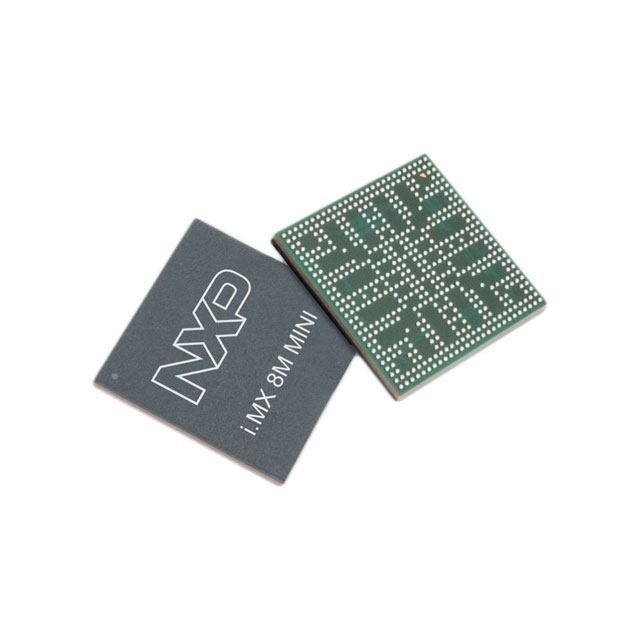

MIMX8MM6CVTKZAA

The MIMX8MM6CVTKZAA is an NXP i.MX 8MM series applications microprocessor featuring a quad-core ARM® Cortex®-A53 64-bit core complex running at 1.6 GHz and an ARM® Cortex®-M4 co-processor. It integrates multimedia, graphics acceleration, and broad connectivity to address embedded and industrial HMI, audio/video streaming, and vision-centric applications.

Designed for industrial environments, the device provides flexible memory interfaces, hardware security features, and a compact 486-LFBGA (14x14) package for surface-mount system designs operating from -40 °C to 105 °C.

Key Features

• Core & Architecture — Quad ARM® Cortex®-A53 64-bit application cores at 1.6 GHz delivering multicore processing for OS and application tasks.
• Co-processor & Real-time — Integrated ARM® Cortex®-M4 subsystem for low-power real-time monitoring and control functions.
• Memory Options — Flexible external memory controllers supporting DDR3L, DDR4 and LPDDR4 to match performance and cost targets.
• Multimedia & Graphics — Graphics acceleration and video processing capabilities with support for 1080p60 decode/encode and a MIPI-DSI display interface; includes MIPI-CSI camera input as described in product documentation.
• Connectivity & I/O — Gigabit Ethernet, two USB 2.0 ports with PHY, PCIe 2.0 (one lane), SDIO/eMMC support, multiple UART/SPI/I²C interfaces and audio interfaces for rich system connectivity.
• Security & Trust — On-chip security features including ARM TrustZone (TZ), CAAM, HAB, OCRAM, RDC, SJC and SNVS for secure boot, cryptography and runtime protection.
• Package & Mounting — 486-LFBGA (14x14 mm) FCBGA package, surface-mount mounting type for compact board designs.
• Industrial Temperature Range — Qualified for industrial use with an operating temperature range of -40 °C to 105 °C.

Typical Applications

• Human Machine Interfaces (HMI) — Rich touch and graphics-enabled user interfaces for industrial control panels and consumer appliances leveraging the Cortex-A cores and MIPI-DSI.
• Streaming Video Devices — Two-way video conferencing, video doorbells, surveillance and digital signage applications using integrated video encode/decode and MIPI-CSI camera support.
• Streaming Audio & AV Systems — Networked speakers, soundbars and AV receivers that require low-power audio processing and multiple audio interfaces.
• Voice Control & Assistants — Voice-enabled devices and assistants including noisy-environment designs, using the processor’s audio I/O and on-chip processing resources.
• Machine Vision & Inspection — Embedded vision and image analytics tasks that combine camera input, video processing and local compute in industrial settings.

Unique Advantages

• Highly integrated multimedia stack: On-chip video processing, graphics acceleration and MIPI display/camera interfaces reduce component count and simplify multimedia system design.
• Scalable heterogeneous processing: Quad Cortex-A53 application cores plus a Cortex-M4 realtime core allow separation of high-level OS tasks and low-power realtime tasks.
• Flexible memory and boot options: Support for LPDDR4, DDR4 and DDR3L memory controllers and eMMC/SDIO boot options enable designers to optimize for performance or cost.
• Industrial-grade robustness: Industrial qualification and wide operating temperature range (-40 °C to 105 °C) support demanding embedded and industrial applications.
• Comprehensive security features: Integrated TrustZone, CAAM, HAB and other security blocks provide hardware foundations for secure boot, key storage and cryptographic acceleration.
• Compact, production-ready package: 486-LFBGA (14x14) surface-mount package facilitates compact system layouts and automated assembly.

Why Choose MIMX8MM6CVTKZAA?

The MIMX8MM6CVTKZAA combines quad-core 64-bit application performance with a realtime Cortex-M4 and a broad set of multimedia, connectivity and security features tailored for embedded and industrial systems. Its flexible memory support and comprehensive I/O options make it suitable for HMI, audio/video streaming, vision, and voice-enabled designs.

With industrial qualification and an extended operating range, this processor is positioned for long-term, robust deployments where multimedia capability, security and reliable connectivity are required.

Request a quote or submit a pricing inquiry to our sales team to discuss availability and lead times for MIMX8MM6CVTKZAA, pricing, and volume options.
