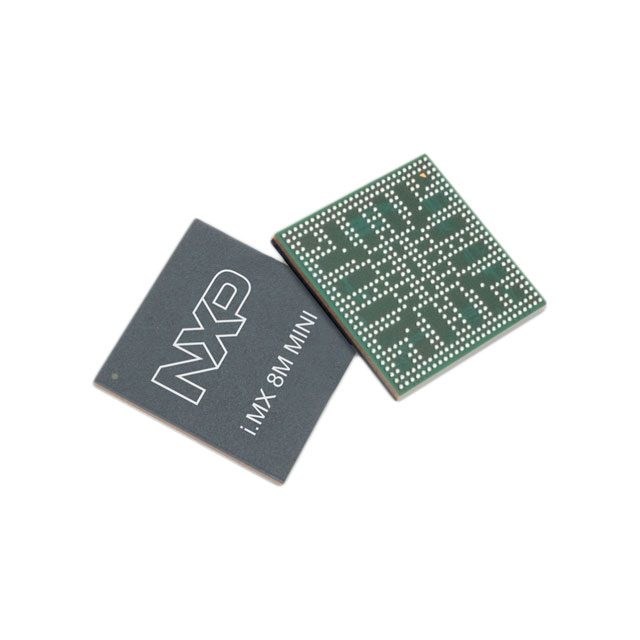

MIMX8MM6DVTLZAA

The MIMX8MM6DVTLZAA is an NXP i.MX 8M Mini applications microprocessor featuring a quad Arm® Cortex®-A53 64-bit cluster operating up to 1.8 GHz and an integrated Arm® Cortex®-M4 coprocessor. It is designed for consumer embedded systems that require media-focused processing combined with low-power operation.

As a member of the i.MX 8M Mini family, this device brings media-specific features and a balance of performance and efficiency for applications that demand audio/video handling, system-level security, and broad peripheral connectivity.

Key Features

• Core and Processing Quad Arm® Cortex®-A53 64-bit processors up to 1.8 GHz plus an Arm® Cortex®-M4 coprocessor (400 MHz) for low-power control tasks.
• Memory Support Integrated DRAM controller supporting LPDDR4, DDR4, and DDR3L devices for flexible memory subsystem design.
• Media and Graphics Media-focused processor architecture with graphics acceleration and MIPI-DSI display interface for embedded multimedia displays.
• Connectivity Interfaces Gigabit Ethernet (GbE) and dual USB 2.0 ports with PHY provide wired connectivity and peripheral expansion.
• Security and System Protection Hardware security features including ARM TrustZone (TZ), CAAM, HAB, OCRAM, RDC, SJC, and SNVS to support secure boot and runtime protection.
• Package and Thermal 486-ball LFBGA package (14 × 14 mm, FCBGA, 0.5 mm pitch) and an operating temperature range of 0 °C to 95 °C for consumer product environments.
• Compliance RoHS compliant and specified for consumer qualification.
• Peripheral Support Additional interfaces such as I2C plus a range of audio interfaces (I2S, AC97, TDM, S/PDIF per family datasheet) and peripheral options noted in the i.MX 8M Mini documentation.

Typical Applications

• Consumer Multimedia Devices Enables audio and video playback, graphical user interfaces, and display-driven consumer products requiring media processing and display support.
• Smart Home and Home Automation Provides the compute and connectivity required for media-rich smart home hubs and appliances in consumer environments.
• Embedded Connectivity Gateways Supports wired connectivity (GbE) and USB peripherals for gateway and edge devices that handle multimedia or I/O aggregation.

Unique Advantages

• Balanced High-Performance and Low-Power Design Quad Cortex-A53 cores paired with a Cortex-M4 allow separation of high-throughput media tasks and low-power control functions, supporting power-efficient system partitioning.
• Media-Centric Feature Set Media-specific features and graphics acceleration plus MIPI-DSI interface simplify implementation of display and multimedia functions in consumer products.
• Flexible Memory Options Support for LPDDR4, DDR4, and DDR3L gives designers choices to match performance, power, and cost targets.
• Comprehensive Security Elements Multiple on-chip security blocks (ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS) help implement secure boot and runtime protections required in consumer applications.
• Compact Surface-Mount Package 486-LFBGA (14 × 14 mm) package enables a small PCB footprint for space-constrained embedded designs.

Why Choose MIMX8MM6DVTLZAA?

MIMX8MM6DVTLZAA positions itself as a media-capable embedded applications processor delivering a blend of multicore performance, integrated security, and flexible memory and I/O connectivity for consumer-class designs. Its inclusion in the i.MX 8M Mini family offers a pathway to scale designs across related family members while leveraging the same architecture and documented hardware features.

This device is suited for developers targeting consumer multimedia, connected home, and embedded gateway products who need verified silicon with integrated media, security, and peripheral support in a compact package and consumer temperature range.

Request a quote or submit a purchase inquiry to evaluate MIMX8MM6DVTLZAA for your next embedded multimedia design.
