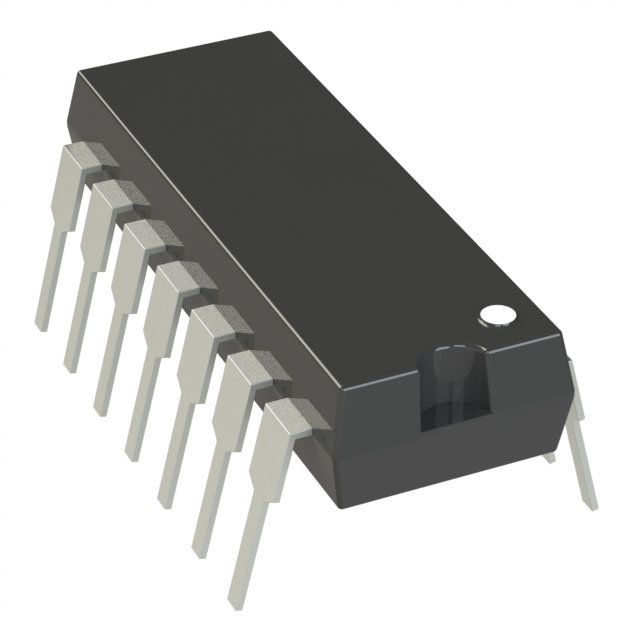

PIC16F1823-I/P
IC MCU 8BIT 3.5KB FLASH 14DIP
| Part Description |
PIC PIC® XLP™ 16F Microcontroller IC 8-Bit 32MHz 3.5KB (2K x 14) FLASH 14-PDIP |
|---|---|
| Quantity | 94 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Datasheet |
Specifications
| Part Package | 14-DIP (0.300″”, 7.62mm) |
|---|---|
| Device Package | 14-PDIP |
| Mounting Method | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor: | PIC |
| Core Size: | 8-Bit |
| Speed: | 32MHz |
| Connectivity: | I2C, LINbus, SPI, UART/USART |
| Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O: | 12 |
| Program Memory Size: | 3.5KB (2K x 14) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 256 x 8 |
| RAM Size: | 128 x 8 |
| Voltage – Supply (Vcc/Vdd): | 1.8V ~ 5.5V |
| Data Converters: | A/D 8x10b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
