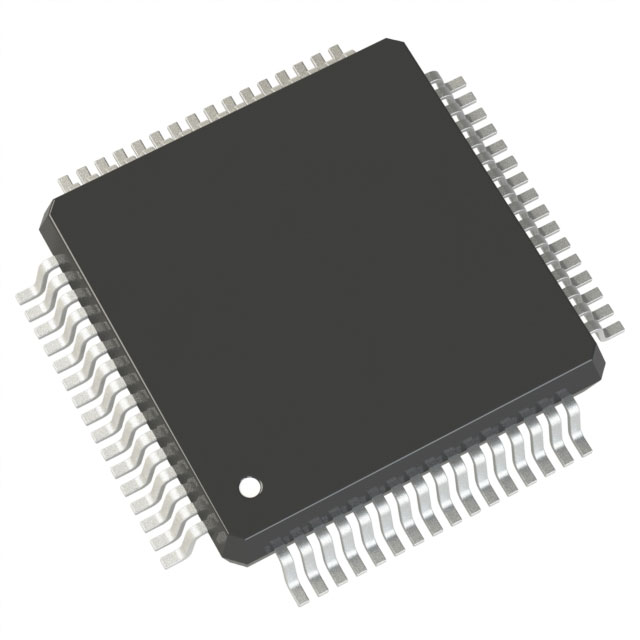

S9KEAZN16AMLH
IC MCU 32BIT 16KB FLASH 64LQFP
| Part Description |
ARM® Cortex®-M0+ Kinetis KEA Microcontroller IC 32-Bit Single-Core 40MHz 16KB (16K x 8) FLASH 64-LQFP (10x10) |
|---|---|
| Quantity | 415 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications
| Part Package | 64-LQFP |
|---|---|
| Device Package | 64-LQFP (10×10) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor: | ARM® Cortex®-M0+ |
| Core Size: | 32-Bit Single-Core |
| Speed: | 40MHz |
| Connectivity: | I2C, LINbus, SPI, UART/USART |
| Peripherals: | LVD, POR, PWM, WDT |
| Number of I/O: | 57 |
| Program Memory Size: | 16KB (16K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 256 x 8 |
| RAM Size: | 2K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 16x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
