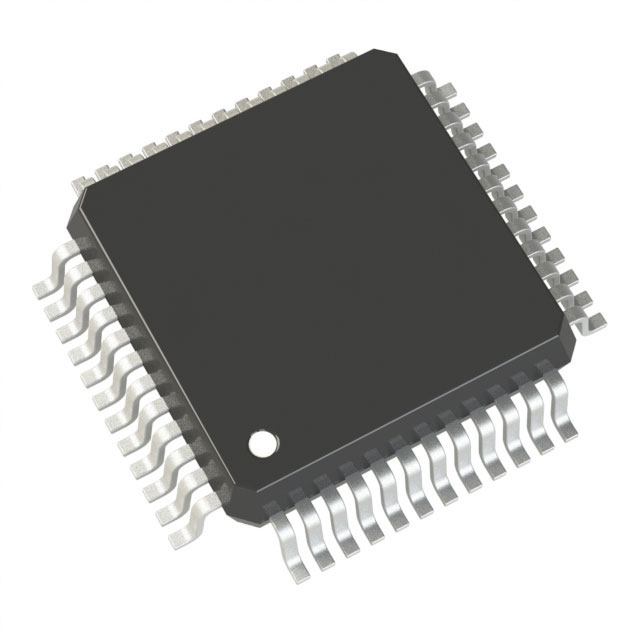

S9S08DN48F2VLF
IC MCU 8BIT 48KB FLASH 48LQFP
| Part Description |
S08 S08 Microcontroller IC 8-Bit 40MHz 48KB (48K x 8) FLASH 48-LQFP (7x7) |
|---|---|
| Quantity | 580 Available (as of May 5, 2026) |
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 52 Weeks |
Specifications
| Part Package | 48-LQFP |
|---|---|
| Device Package | 48-LQFP (7×7) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor: | S08 |
| Core Size: | 8-Bit |
| Speed: | 40MHz |
| Connectivity: | I2C, LINbus, SCI, SPI |
| Peripherals: | LVD, POR, PWM, WDT |
| Number of I/O: | 39 |
| Program Memory Size: | 48KB (48K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 1.5K x 8 |
| RAM Size: | 2K x 8 |
| Voltage – Supply (Vcc/Vdd): | 2.7V ~ 5.5V |
| Data Converters: | A/D 16x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 3A991A2 |
| HTS Code | 8542.31.0001 |
