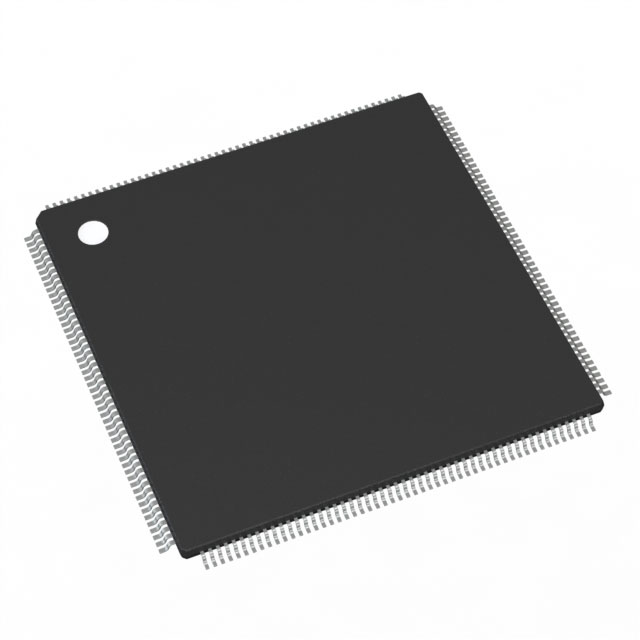

SPC5646CCF0MLU1
IC MCU 32BIT 3MB FLASH 176LQFP
| Part Description | e200z4d, e200z0h MPC56xx Qorivva Microcontroller IC 32-Bit Dual-Core 80MHz/120MHz 3MB (3M x 8) FLASH 176-LQFP (24x24) |
|---|
| Product Category | Microcontrollers |
|---|---|
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Leadtime | 16 Weeks |
| Datasheet | |
| Quantity | 486 Available |
Specifications
| Part Package | 176-LQFP |
|---|---|
| Device Package | 176-LQFP (24×24) |
| Mounting Method | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor: | e200z4d, e200z0h |
| Core Size: | 32-Bit Dual-Core |
| Speed: | 80MHz/120MHz |
| Connectivity: | CANbus, Ethernet, I2C, LINbus, SCI, SPI |
| Peripherals: | DMA, POR, PWM, WDT |
| Number of I/O: | 147 |
| Program Memory Size: | 3MB (3M x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | 64K x 8 |
| RAM Size: | 256K x 8 |
| Voltage – Supply (Vcc/Vdd): | 3V ~ 5.5V |
| Data Converters: | A/D 27x10b, 5x12b |
| Oscillator Type: | Internal |
Environmental
| REACH Compliance | REACH Unaffected |
|---|---|
| RoHS Compliance | ROHS3 Compliant |
| Moisture Sensitivity Level | 3 (168 Hours) |
| ECCN | 5A002A1 |
| HTS Code | 8542.31.0001 |
