AM2971ADC

The AM2971ADC is a CMOS microprocessor circuit built around the Am2971 PEG core. It is a single-core, 8-bit device offered by Advanced Micro Devices for embedded microprocessor applications.

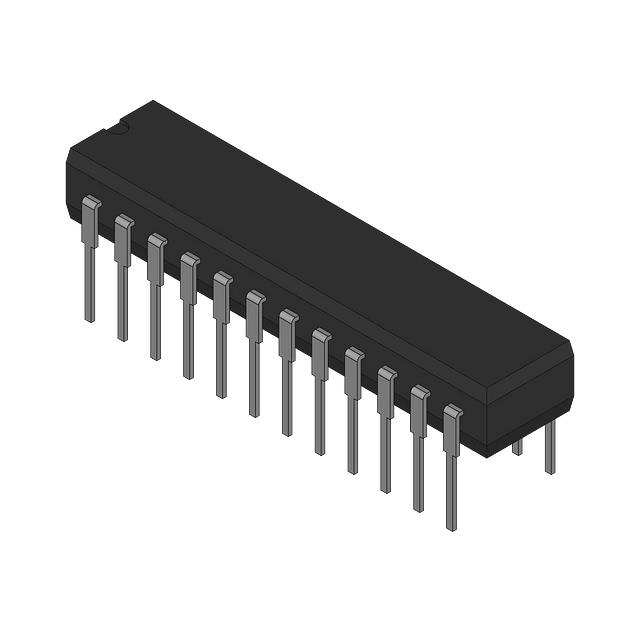

Designed for 5 V I/O systems, the device is supplied in a 24‑pin ceramic DIP (24‑CDIP) package for through-hole mounting. The AM2971ADC is a commercial-grade component with an operating temperature range of 0°C to 70°C and RoHS compliance.

Key Features

• Core and Architecture  Am2971 PEG core; single 8‑bit core suitable for embedded microprocessor designs.
• Power  Defined 5 V I/O voltage for compatibility with 5 V system logic.
• Package and Mounting  24‑CDIP package in a through‑hole form factor for board-level mounting and legacy socket compatibility.
• Grade and Temperature  Commercial grade with an operating temperature range of 0°C to 70°C for standard environment deployments.
• Environmental Compliance  RoHS compliant.
• Bus Width  Single core with an 8‑bit bus width as specified.
• Graphics Acceleration  No graphics acceleration included.

Typical Applications

• Embedded Systems  Use as the primary microprocessor in embedded controller designs where an 8‑bit core is appropriate.
• Through‑Hole Prototyping and Development  24‑CDIP through‑hole package supports hand assembly and socketed development boards.
• Legacy Board Maintenance  Suitable for replacement and repair in existing commercial‑grade equipment that uses 5 V logic and DIP packaging.

Unique Advantages

• 5 V I/O Compatibility: Direct compatibility with 5 V logic systems reduces the need for level translation in existing designs.
• Standard 24‑CDIP Package: Through‑hole 24‑pin DIP provides straightforward mounting and supports legacy sockets and manual assembly workflows.
• Single 8‑Bit Core Design: Simplified architecture for straightforward embedded control tasks and deterministic behavior.
• Commercial Temperature Range: Rated 0°C to 70°C for deployments in standard commercial environments.
• RoHS Compliant: Meets RoHS requirements for lead‑free assembly and environmental compliance.

Why Choose AM2971ADC?

The AM2971ADC positions itself as a practical CMOS microprocessor option for embedded applications requiring a single 8‑bit core, 5 V I/O compatibility, and through‑hole 24‑pin packaging. Its commercial temperature rating and RoHS compliance make it suitable for standard industrial and commercial product designs and maintenance.

This part is appropriate for designers and procurement teams working with legacy DIP form factors, development and prototyping environments, or embedded systems that align with the device's electrical and thermal specifications. Sourcing the AM2971ADC supports continuity in designs that depend on the Am2971 PEG core architecture from Advanced Micro Devices.

Request a quote or submit an inquiry for pricing and availability of the AM2971ADC. Our team will respond with ordering details and lead‑time information.
