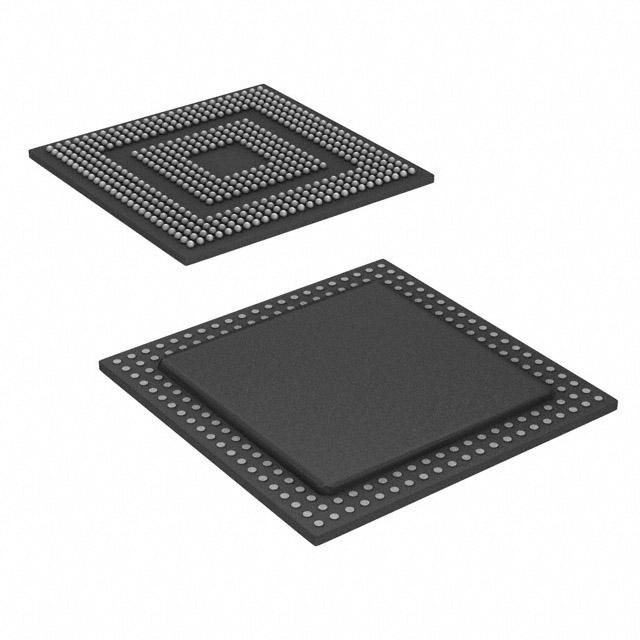

AM3715CBCD100

The AM3715CBCD100 is a Sitara AM37xx series microprocessor from Texas Instruments featuring a single ARM® Cortex®-A8 core running at 1.0 GHz. It is a 32-bit MPU designed for embedded and industrial applications that require integrated multimedia and interface capabilities.

With on-chip controllers for display and memory, four USB 2.0 interfaces, NEON™ SIMD multimedia acceleration and an industrial temperature grade, this device targets embedded systems that need performance, interface integration, and robust operating-temperature support.

Key Features

• Core and Performance ARM® Cortex®-A8 single core, 32-bit processor running at 1 GHz for deterministic embedded processing.
• Multimedia Acceleration Integrated multimedia DSP capabilities and NEON™ SIMD support to accelerate media and signal processing tasks.
• Memory and Display Controllers On-chip SDRAM controller and LCD display interface controller for streamlined memory and HMI integration.
• USB Connectivity Four USB 2.0 interfaces to support multiple host/device connections and peripheral integration.
• Interface Options Additional HDQ/1-Wire interface support for simple sensor or serial device connectivity.
• Power and I/O I/O voltage specified at 1.8 V for compatible system-level power design.
• Package and Mounting 515-POP-FCBGA (14×14) 515-VFBGA FCBGA package, designed for surface-mount assembly.
• Industrial Temperature Range Rated for operation from -40°C to 90°C to meet industrial-environment requirements.
• Environmental Compliance RoHS compliant to meet common environmental directives.

Typical Applications

• Industrial HMI and Control — Use the integrated LCD controller and graphics acceleration to drive human-machine interfaces and panel displays in industrial equipment.
• Multimedia Embedded Devices — Leverage NEON™ SIMD and multimedia DSP features for media playback, image processing, or UI acceleration.
• USB Peripheral Systems — Four USB 2.0 ports enable multi-device connectivity for data transfer, peripherals, or sensor interfaces.
• Sensor and Monitoring Nodes — HDQ/1-Wire and SDRAM controller support local sensor interfacing, data buffering, and real-time processing in embedded monitoring systems.

Unique Advantages

• Integrated Display and Memory Controllers: Built-in SDRAM and LCD controllers reduce external component count and simplify board layout for HMI and embedded designs.
• Multimedia Acceleration with NEON™: On-chip NEON™ SIMD and multimedia DSP capabilities accelerate signal and media processing without needing external accelerators.
• Multiple USB Interfaces: Four USB 2.0 interfaces provide flexible peripheral and host connectivity options for a wide range of embedded system topologies.
• Industrial Temperature Rating: Operation from -40°C to 90°C enables deployment in harsh or thermally demanding environments.
• Compact POP-FCBGA Package: The 515-POP-FCBGA (14×14) package supports a high-density, surface-mount assembly suitable for space-constrained designs.
• RoHS Compliant: Meets common environmental compliance requirements for regulated markets.

Why Choose AM3715CBCD100?

The AM3715CBCD100 combines a 1.0 GHz ARM® Cortex®-A8 core with integrated multimedia acceleration, display and memory controllers, and multiple USB interfaces to deliver a compact, industrial-grade MPU for embedded systems. Its specification set makes it suitable for designs that require on-chip integration to reduce BOM complexity while maintaining performance for user interfaces and media tasks.

As part of the Texas Instruments Sitara AM37xx series, the AM3715CBCD100 is positioned for engineers and product teams building industrial and embedded applications that demand a balance of compute, connectivity, and rugged operating-temperature capability.

Request a quote or submit an inquiry for AM3715CBCD100 to get pricing and availability information and to discuss your specific volume or supply needs.
