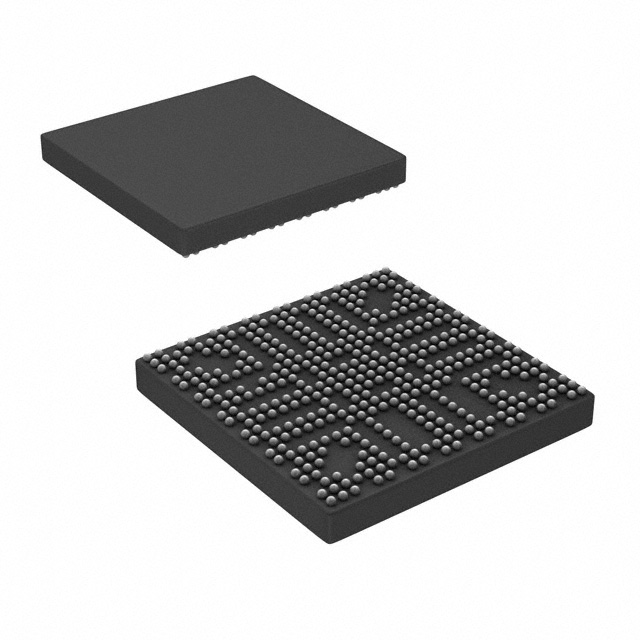

AM3715CUSA

The AM3715CUSA is a Sitara AM37xx series microprocessor from Texas Instruments featuring a single ARM® Cortex®-A8 core running at 800 MHz. Designed for embedded and industrial applications, this 32‑bit MPU integrates multimedia and graphics capabilities alongside multiple peripheral interfaces to support human‑machine interfaces, industrial controllers, and USB‑centric designs.

With an industrial operating range and RoHS compliance, the AM3715CUSA targets designs that require balanced processing performance, on‑chip multimedia acceleration, and a compact surface‑mount package for high‑density assemblies.

Key Features

• Core Single ARM® Cortex®‑A8 32‑bit core running at 800 MHz for general embedded processing tasks.
• Multimedia & DSP Integrated multimedia co‑processor support including NEON™ SIMD and DSP capabilities for accelerated multimedia operations.
• Memory Interfaces Onboard SDRAM controller to interface with external SDRAM devices for system memory needs.
• Display LCD display interface controller for driving graphical user interfaces and HMIs.
• USB Connectivity Four USB 2.0 ports to support multiple USB peripherals and host/device configurations.
• Additional Interfaces HDQ/1‑Wire interface support for simple serial communication and accessory connections.
• Graphics Acceleration Built‑in graphics acceleration to assist with UI rendering and multimedia display tasks.
• Power & I/O 1.8 V I/O signaling voltage to match common embedded logic levels.
• Package & Mounting 423‑FCBGA (16×16) surface‑mount package suitable for compact, high‑density PCB layouts; listed package case also includes 423‑LFBGA/FCBGA variants.
• Operating Range Industrial temperature rating from ‑40°C to 105°C for deployment in demanding environments.
• Compliance RoHS compliant.

Typical Applications

• Human‑Machine Interfaces (HMI) Drive LCD displays and responsive graphical interfaces using the integrated LCD controller and graphics acceleration.
• Industrial Control Use the industrial operating temperature range and robust I/O set for factory automation and process control systems.
• Multimedia Devices Leverage NEON™ SIMD and multimedia DSP support for audio/video processing in embedded players and signage.
• USB‑Centric Peripherals Integrate multiple USB 2.0 ports to support hubs, storage, or peripheral connectivity in embedded systems.

Unique Advantages

• Balanced Processing Performance: 800 MHz ARM® Cortex®‑A8 core provides sufficient compute capacity for embedded applications requiring both control and multimedia tasks.
• Integrated Multimedia Acceleration: NEON™ SIMD and DSP capabilities reduce software processing load for audio/video and signal processing functions.
• Multiple USB Ports: Four USB 2.0 interfaces simplify designs that need several peripheral connections without external hubs.
• Industrial‑Grade Operation: Rated from ‑40°C to 105°C, suitable for deployments in harsh or temperature‑extreme environments.
• Compact Surface‑Mount Package: 423‑FCBGA (16×16) package enables a small PCB footprint while supporting high pin density for system integration.
• Reduced BOM Complexity: On‑chip SDRAM controller, LCD interface, and graphics acceleration consolidate system functions and can reduce external components.

Why Choose AM3715CUSA?

The AM3715CUSA positions itself as a capable, industrial‑grade Sitara microprocessor that combines an ARM® Cortex®‑A8 core with multimedia acceleration, multiple USB interfaces, and display support. It is well suited for embedded designers who need a compact, integrated MPU for HMIs, industrial controllers, and multimedia‑enabled devices.

Backed by Texas Instruments and delivered in a RoHS‑compliant 423‑FCBGA surface‑mount package, the AM3715CUSA offers a practical balance of performance, integration, and environmental tolerance to support reliable, long‑lifecycle embedded designs.

Request a quote or submit an inquiry to receive pricing and availability for the AM3715CUSA and to discuss how it fits your next embedded or industrial project.
